JLSZW-6, 10 Current&Voltage Combined Transformer Metering Box CT&PT Transformer
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
JLS-10 Current&Voltage Combined Transformer Metering Box CT&PT Transformer
-
LZZBJ9-10 LZZBJ9-12 Current Transformer
-
LZZBJ10-10Q Current Transformer 11kv Current Transformer 12kv Current Transformer
-
JSJW-3 3KV Outdoor Voltage Trasformer Potential Transformer
-
JSJW-10 3KV 6KV 10KV Outdoor Voltage Trasformer Potential Transformer
-
JDJ(J)2-35, JD(X)N2-35 35kv 40.5kv Voltage Transformer Outdoor Voltage Trasformer Potential Transformer
Product Details
| Place of Origin | China | Brand Name | HOSSIN | |
| Model Number | JLSZW-10 JLSZW-6 |
Product Description
JLSZW-6, 10 Current&Voltage Combined Transformer Metering Box CT&PT Transformer
JLSZW -6, 10 three-phase outdoor dry high-voltage electric measuring tank
(combined transformer) is made up of two or three single-phase voltage
transformers (PT) and current transformers (CT). PT and CT are both electromagnetic
type.
This type of transformer is applicable to 50Hz (rated frequency), three-phase AC, 6kV,
10kV (rated voltage) electric net for power measuring. It is fixed on the high-voltage
side of power supply transformer. There is one three-phase active watt-hour meter

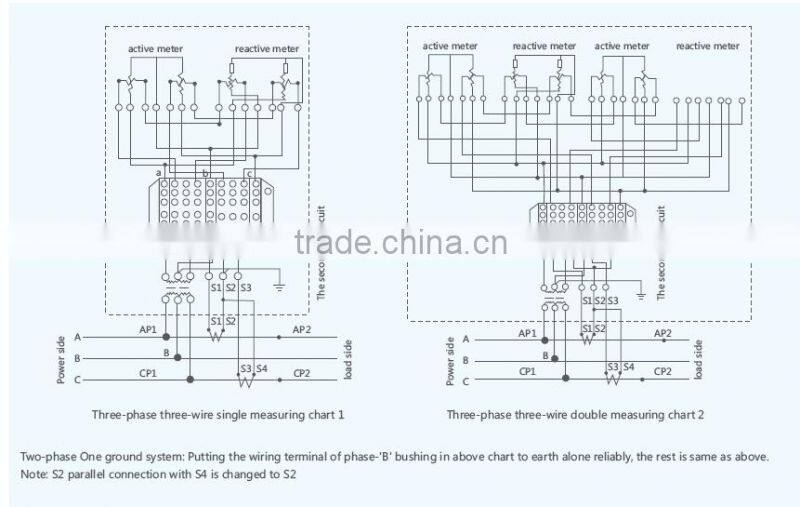

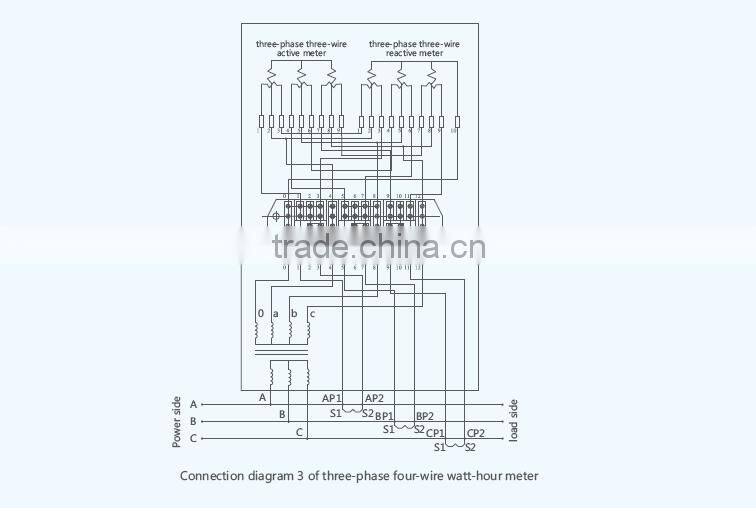

and one reactive watt-hour meter installed inside measuring box, which are used to
directly measure active and reactive appliance in high-voltage circuits.
Rated Voltage: 10kV, 6kV
Accurate Grade: 0.5 and 0.2, 0.5S and 0.2S
