DXKS-350 Portable Remove Broken Taps, Screws, Bolts Machine In China

DXKS-350 Electric spark perforator / broken screw extractor /   DXKS-350 Portable Remove Broken Taps, Screws, Bolts Machine In China

Description:

1. A tool for forcing a pin, bolt, or rivet in or out of a hole.
2. To remove or crush a broken screw in machine or metal sheet without any damage to the workpieces
3. Processing ordinary metal and cemented carbide, making small holes, irregular holes; Small die, die casting molds.
4. Crush or extracting breaking screw taps in metal holes without any damage to the workpieces.
5. Make letters in roll or other metals.

Introduction;

1. Supplyvoltage: 220V
2. Power: 600W
3. Power frequency: 50Hz~60Hz
4. Circuit voltage: (DC)70V~95V
5. Maximum electrode diameter: 0.5 ~ 6.5mm
6. Manual spindle head travel: 150mm
7. Automatic feed travel: 50mm

8. Can extract screw size: M3-M30 (mm)

lor:blue

10.Production capacity: 2000sets/Month

Model No:DXKS-350

11. Usage:

Extracting broken screws in machinery/workpeices or punch hole

Machine pictures ( machine with tap pictures, broken tap example, machine extractor head)

  Remove broken taps, bolts, screws out of workpieces process: ( DXKS-350 tap remover machine working process):

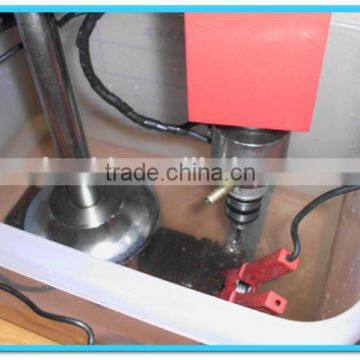

  Working with machine( working medium is just kersene or water):

Screws, bolts, taps examples:
