Multifunctional Room Soundproof Folding Wooden Parttion Wall

Standard cardbox or customized by customer's request

Movable And Operable Partition System wood carving partition

      Movable and operable partition system for modern living spaces Rooms of different types and usage can be divided, reduced in size, enlarged, have their proportions modified and thus be adapted on demand to the different number of people using them. From the small conference room to the large exhibition hall. This flexibility generates a special atmosphere, characterized by creative aesthetics and enhanced by a wide range of surface materials and finishes.

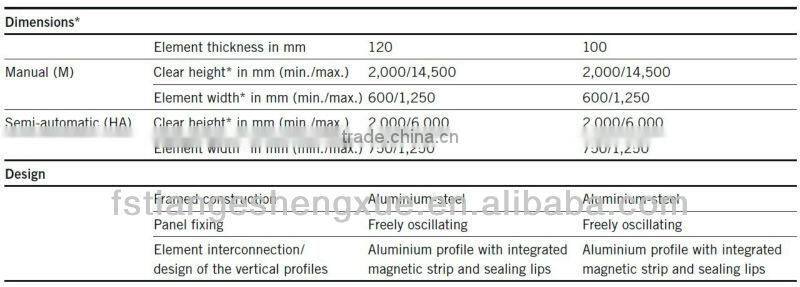

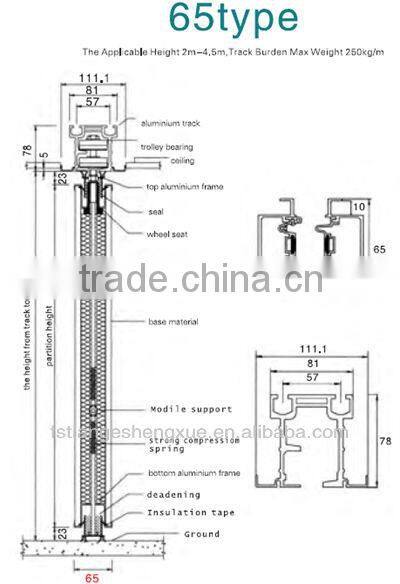

Movable And Operable Partition System: Tiange movable and operable partition system thickness is 65mm, it can be double or single piece, and can be designed U shape or Lshape door. every panel can board 225kgs weight. The top and bottom flex range is 22.5mm.

Movable And Operable Partition System Insulation Coefficient:.

A>Galvanized sheet base board: sound insulation coefficient RW=36dB,the density is 30kg/m2;

B>MDF or ply wood base board: sound insulation coefficient RW=32dB,he density is 24kg/m2;

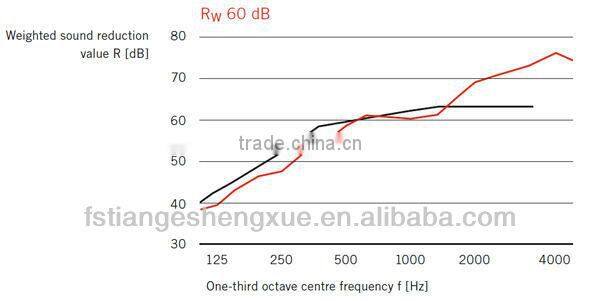

C>Magnesium board base board: sound insulation coefficient RW=60dB,the density is25kg/m2;

Movable And Operable Partition System Usage Range:

1>Movable and operable partition system is modernized decoration style. It can separate the space speedly and conveniently. And it has sound insulation and heat insulation and fireproof function.

2>Movable and operable partition system  is made from high density frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard.

3> The finish board is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in may different ways on movable and operable partition system.

4> It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the ceiling decoration. It won’t affect the whole decoration style on movable and operable partition system.

5> Around the board ,there is sound insulation rubber, it can help to insulate the sound entering.

6> We can add single or double doors on the board for convenience on movable and operable partition system

7> We have many different finish to meet customer different requirement and get different decoration effect.

Easy Parking On Movable And Operable Partition System

In their stacked position, the elements form a compact package and can be accommodated in the smallest of spaces depending on the room situation. The low weight of the elements and the associated structural advantages are particularly noticeable here.The four standard stacking or parking track systems offer convenient operability with a minimum of noise from the individual elements as they slide into position on movable and operable partition system.

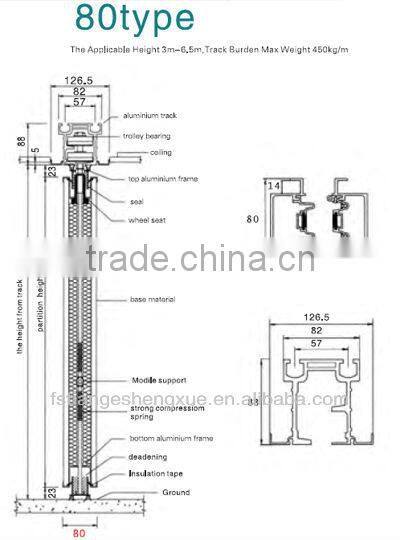

Tiange Movable And Operable Partition System

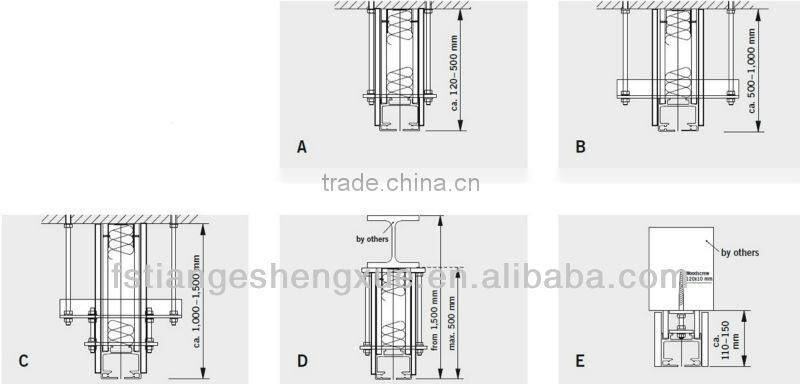

The tiange system offers a range of suspension systems to suit each installation and application. Here are just some examples.

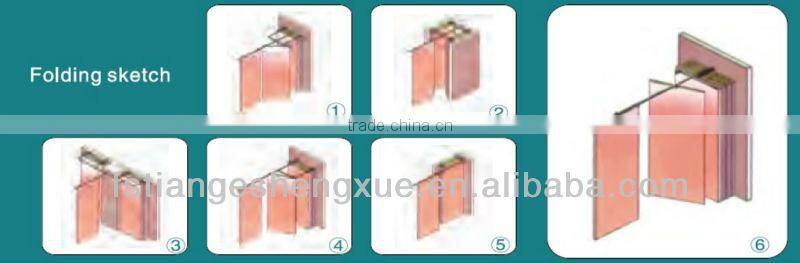

Movable And Operable Partition System Board Parking Solution

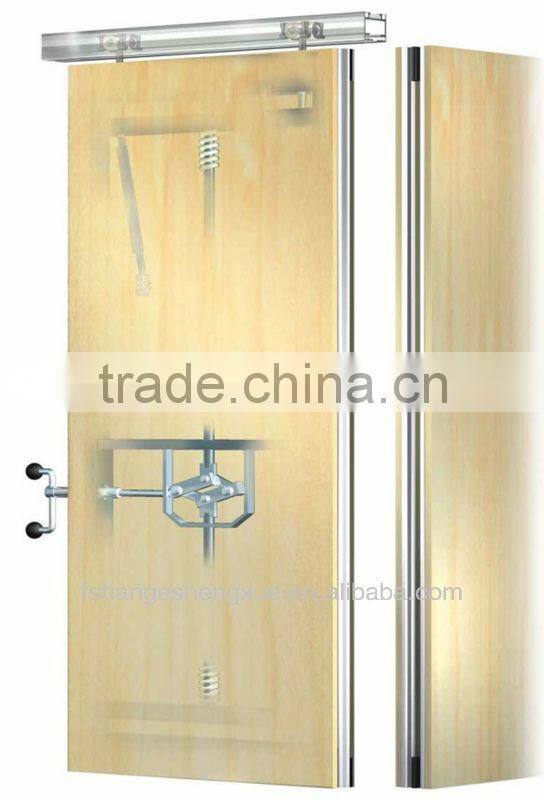

The Special Point Processing On Movable And Operable Partition System

(1).Horizontal seals

The principle of double skin construction on movable and operable partition system is applied consistently in the seal area in order to ensure maximum sound insulation. A spindle mechanism presses extendable, spring loaded, double seals against the fl oor and the ceiling track. Any irregularities in the fl ooring are offset by spring-loaded double chamber seals. The contact force of the sealing strips does not place excessive strain on screed fl oors, but does ensure that the Variflex system is sufficiently stable to prevent the panels moving, even in the event of an attempted forced entry.

(2).Corner seals

Variflex resolves the technical issue of corner seals with specially designed, corner pieces that also reinforce the stability and sound insulation properties of movable and operable partition system

(3)Magnetic strip

The individual panels are centred via the magnetic strips to guarantee sound positive locking and sealing.

(7).Operating handle

In manual systems, the element sealing strips are operated using a crank. The crank has as a captive bayonet fitting to prevent it from being pulled off. The bayonet arrangement is easy to disengage and prevents crank slippage on movable and operable partition system

(8).Frames

The frame is made from torsionally stiff aluminum hollow-chamber profies and sectional steel tubing.Transverse forces will not, therefore, cause deformation of the frame. Combined with the panel mounted in acoustically free suspension, Varifl ex elements are able to offer both exceptional strength and outstanding sound insulation of movable and operable partition system.

(9).Roller assemblies

The dampening track roller assemblies prevent the transmission of impact forces and operating noise,so protecting the element, rail and carrier on movable and operable partition system.

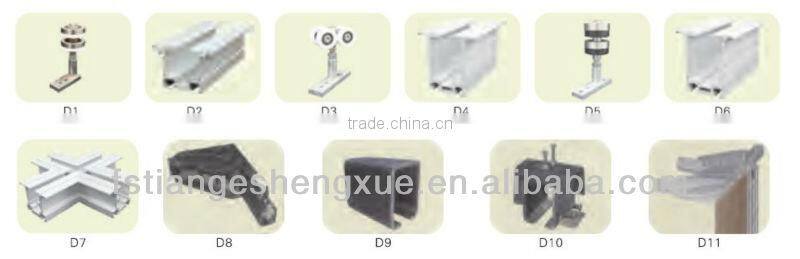

The Accessories Of Movable And Operable Partition System

Our movable and operable partition system accessories are custom for each client and project, and they are also made of superior material. Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections.

5. Besides the high sound absorbing test, we have passed the Eco-protection test and Fireproof test, to ensure you to get the top quality product, and enjoy a safe,comfortable and low carbon emission way of life on movable and operable partition system .

 CE, ISO9001-2008,BV And Alibaba Supplier Assessment.

6.  Movable And Operable Partition System Application:

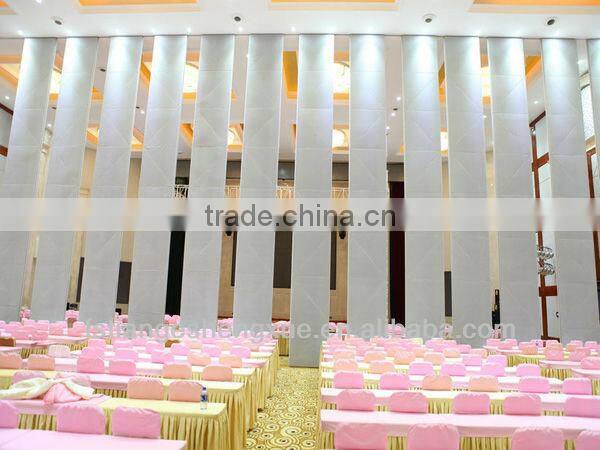

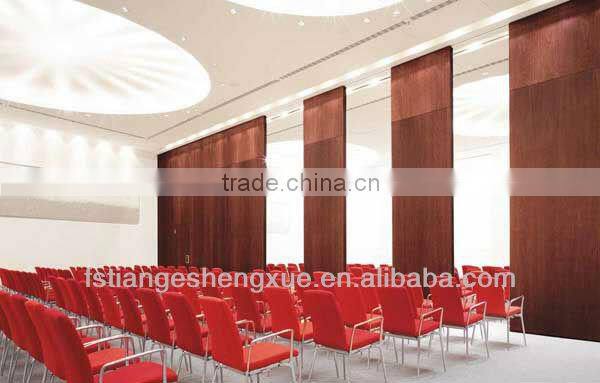

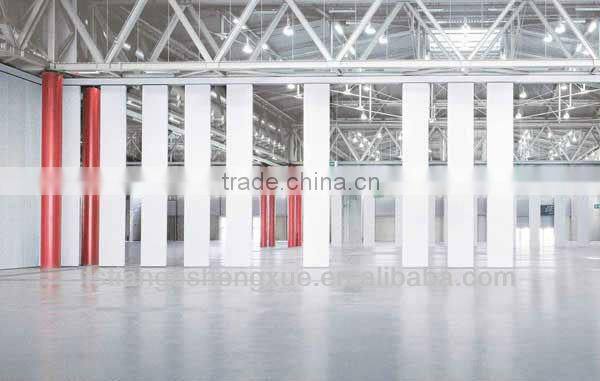

It's widely used at huge stadium, cinema, meeting room, office room, music hall, theather and work shops etc. any places where need sound absorption can use this products.

7.  Foshan Tiange Acoustic And Decor Material Manufacturer produce many kinds of acoustic products and acoustic movalbe partitions. located in the Capital city of Building Materials - Nanhai District, Foshan City. Our factory covers an area of more than 10000 square meters and has passed ISO9001:2008 International Quality Certificate, CE and BV approval. Including many professional test report: National fire-rated test report, environmental protection test report, sound absorption test report, etc., more than 30 kinds products involved in total.

        We have a whole set of automatically computer controlled machines and professional technical workers to ensure our product high quality. Our output of Wood Wool Cement Soundproofing Panel is more than 400000 square meters per year and our output of movable partition systems is more than 40000 square meters per year. More than 35% of our products are exported to clients from all over the world. Welcome to visit our factory to build a  long terms cooperation relationship.

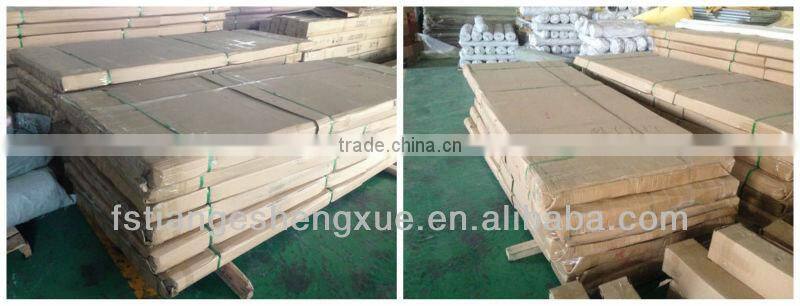

8. The Packing Of Movable And Operable Partition System

9. Packaging, Delivery And Sea Transportation On Movable And Operable Partition System
