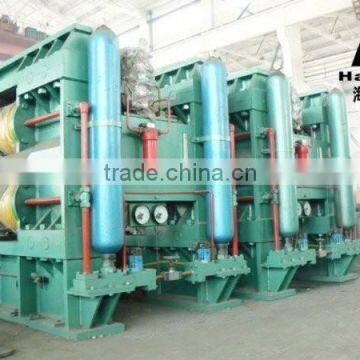

New type 170-100 Cliner Rolling Machine

Jiangsu Haijian stock Co.,ltd.

Technical paramteter of G170-100 roller press

Ⅰ,Technical parameter

1,Equipment name   G170-100

2.Application      Grinding cement and clinker

3.Quantity         1set

4.Material name   cement and clinker etc.

5.Comprehensive moisture         ≤1-1.5%

6.Inlet grain      D_max≤60mm

D_average=25mm, >75%

7.Outlet grain     ≤0.09mm,>25%,

≤2.5mm, >65%

8.Productivity     580-670t/h

9.Work style       Continuous

10.Power supply    Votlage ~10000V

        Motor type YRKK5001–4 IP44

11.Arrangement way     Indoor

12.Requested power     2×900KW

13.Diameter of roller  1700mm

14.Width of roller     1000mm

15.Linear speed        1.65m/s

16.Weight of equipment ~210tons

Technical parameter of Roller Press

General Technical Requirements

cess requirements

(1)installation requirements: space requirement (size needed to retain around the roller press),about 2m at back and forth belong the roller axis, and each 2m belong the vertical direction, height: clear head is 2m from the top of frame.

(2)foundation requirements: Because the extrusion and crushing force is balanced in frame, so it only consider both vertical and level dynamic load factor.  It can divide the foundation into two parts according to the weight and calculating the weight bearing of each by the ratio of equipment long. The vertical dynamic load factor can be considered of 1.8 while the level is 1.6.

(3)It shall equip magnetic separator and metal detector before feeding of roller press , and not allow the briquette into the grinder roll. The feeding material of less than 1mm shall no more than 25% to avoid moving of roller press.

 (4)The integration water content of material shall no more than1.5%.

2. manufacturer’s standard and technical requirements

The equipment designing and manufacturing shall in line with existing state standards and ministerial standards, which including:

1,The roller shall be line with the occupation standard of JC/T845-1999.

2,The cutting machined part will use current technique requirement JB/ZQ4000.2-86.

3,The technical specifications of carbon structure steel is GB700-88.

4,Current technique requirement of welding is JB/ZQ4000.3-86

5,Rust prevention grade isGB8923-88.

6,The current technique of painting is JB/ZQ4000.10-86.

7, The current technique of packing is JB/ZQ4286-86.

8,engineering construction and acceptance specification of electric installation is GBJ232-82.

Roller body is hammered steel 45#, processing normalizing treatment,resurfacing welding wear resistant material on principle axis surface, first resurfacing welding using time is 8000 hours, overlaying welding using time is 3000 hours,

Stander structure is consist of upper,nether beam and left,right vertical shaft, and linked to a internal frame welding structure by loading bearing high strength bolts. It shall do integral relieving stress treatment after main frame welding.

Main axis bearing equips thermoelectric pair monitor bearing working temperature. Principle axis adopts midheaven hydro cooling.

  Roller presser is painted evenly, with conformity hue, without flow phenomenon.

nical documents

(1)The seller shall supply two sets of following document(including electronic edition) when signing the technical agreement:

Technological flow sheet, general drawing of roller press, size drawing of foundation installation, interface size drawing, electric wiring drawing, work certificate which all satisfied the designing requirements.

 (2)The seller supply general drawing of roller press, foundation drawing, instruction book(including assembly drawing, elementary drawing and list of wearing parts), instruction book of parts and components, material of main axis roller and fault detection reports when delivery after effective date of the contract.

4,quality assurance and after-sale service

1.The seller shall guarantee that the goods is complete new, original, with topping process and best material which is in line with relevant requirements of quality ,specification and parameter .

2.The seller shall allow the buyer dispatch staff for equipment installation and quality inspection, and shall supply necessary technical drawings and detecting tools etc, in the period of inspection.

3. Accumulated running time of roller surface is: no less than 8000 hours;

     4. Time from equipments’ arriving at plant , trial running, supervision of seller joining installation and debugging until to reaching the mark, is no less than 15 days.

5.Training operating and maintenance staff for free.

6. If there is any operation or quality problems during the operation, the seller shall dispatch staff for filed overhauling and maintenance as soon as possible after receive the notice of the buyer .When in quality guarantee, if there are spare parts damaged of mass defect, it shall be compensate for free(except the accident of non-normal operation). Out the warranty period, the seller can provide technical support and responsible for repair, only for cost, and supply favorable long-term spare parts..
