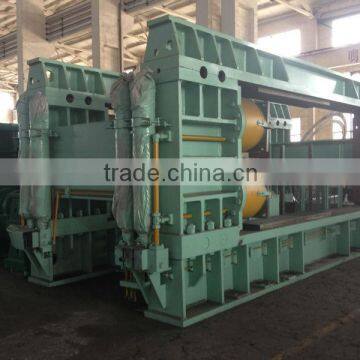

Haijian Roller Press Machine

Specifications

    Roller press is new cement saving energy grinding equipment and developed in the middle of 1980s, can replace the system of ball mill competently or in partial, it is characterized by low consumption and lower noise, also reform the old factory. After selecting the equipment, may increase output of 40-100% for ball mill, fine material of 0.08mm covers 20-55%after material cake is pressed, less than 2mm covers 65-85%, Internal structure of fine material is filled with many small cracks, the grind ability is improved greatly. The roller surface is used heat built-up welding; It is convenient to maintain the abrasive layer.

    Our company started design and manufacture of roller press of National Seven five project. It has been shipped over 1100 sets into the market   from 1987 to now. We have pursued the improvement and the innovation for many years. It has formed a set of mature equipment technology and complete grinding process, main characters are as the following:

    1. Roller surface is used built-up welding and the international advanced wear-resist welding electrode. The used life is improved greatly.

    2. The capacity of hydraulic cylinder with aviation technology is reliable.

    3. The automatic control system uses touching screen dynamic demonstration. The automatic control is equipped with expert diagnose system, settle the trouble automatically and control reliability.

    4. Equip with classifier, V separator and rotary classifier. The separating ratio is 90%.

    5. Provide technical service and process design in free.

 Following Table lists several specification of low capacity:
