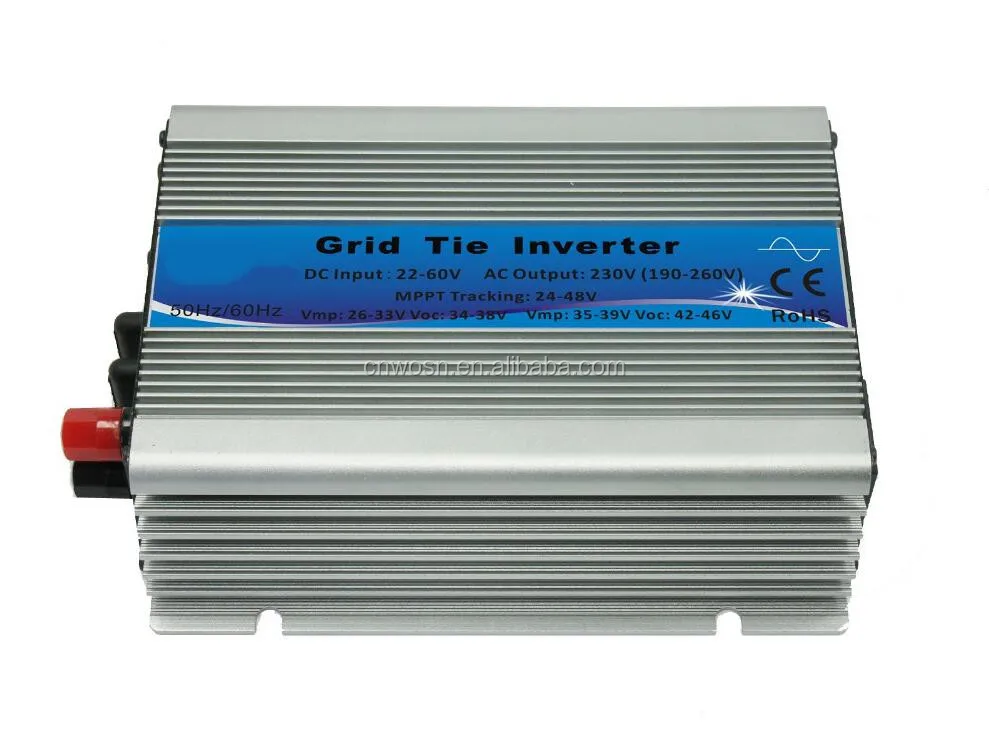

DC 22-60V to AC 220V 300W Solar Grid Tie Inverter For PV System

DC 22-60V to AC 220V 300W Solar Grid Tie Inverter For PV System

① Suitable for 36V/72 cells solar panels Vmp:35-39V,Voc:42-46V.

② Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.

③ Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more reliable.

④ Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.

⑤ Adopting high-frequency isolation transformer type,high efficiency,and high security.

⑥ Wide input voltage (22-60VDC), classification processing for different input voltages. It can work with different DC power supplies.

① Work with 36 cells solar panel (Vmp: 18-21V, Voc: 20-24V)

② Work with wind turbine, output DC voltage is fit in with the range as specified and a24V charge controller needed to be used if the wind turbine without build-in AC TO DC charge controller.

③ Work with battery, PV module and wind turbine charging the battery and battery discharging to inverter for converting AC power which will feed into power grid.

Our Power Inverters Include:

Off Grid:
①  Pure Sine Wave: 200W-8000W
②  Modified Sine Wave: 200W-5000W

On Grid:
①  Micro Gird Tie Solar Power: 200W-1000W
②  Wind Power: 250W-2000W
③  Solar Pump Inverter: 750W-100KW
