Home > Products > Rubber Conveyor Belt > CC Cotton Conveyor Belt Free Samples Made in China

CC Cotton Conveyor Belt Free Samples Made in China

FOB Price

US$ 5 - 30 / Meter

100 Meters(Min. Order)

Port Any port in China
Payment TermsT/T L/C Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	Hyrubbers
Model Number	Cotton Conveyor Belt

Product Description

Cotton canvas is woven by cotton fibers both in warp and in weft. Its elongation is relatively low. It is good in mechanical fastening and adhesion with rubber. Cotton conveyor belt has relatively little deformation under high temperature.The cotton conveyor belt is normally used for carrying light materials in short distance, applying in different industry such as metallurgy, building site, power industry, dock, mineral industry.

Standards:

GB/T7984-2001 idt ISO9001:2000 standard.

Features:

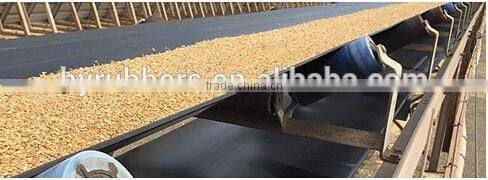

Good flexibility, groove formation property and cost-effective. It is mainly used to transport powder,small and medium granular or less wearing material and some other articles to the belt at common temperature.

Structure:

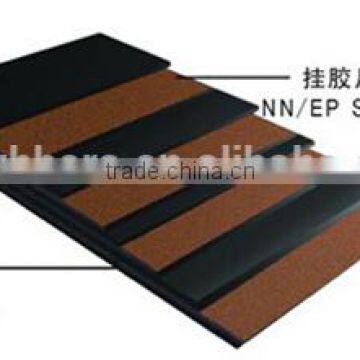

It uses multi-layer cotton canvas or terylene cotton canvas as carcass and finished through the processes of calendering, firming and vulcanizing, etc.

Types:
Cotton canvas type and terylene cotton canvas type, there are also some kinds of cold resistance Cover Physical and Mechanical Properties

Item	Cover type and Property
Item	H	D	L
Tensile Strength Mpa≥	24.0	18.0	15.0
Elongation of Breaking % ≥	450	400	350
Changing rate for tensile strength Elongation at breaking after Ageing 70℃x168h %	+-25	+-25	225
Wear away quantity mm3	120	100	200
Note : type H is for high tear condition, D for high abrasion condition, L for ordinary condition.

Product Specification:

Fabric Structure	Fabric material		No. of fabric plies	Width mm	Length m	Cover thickness mm
Fabric Structure	Warp	Weft	No. of fabric plies	Width mm	Length m	Top	Bottom
Cotton Vanvas	Cotton	Cotton	3-12	300-2000	1-300	2.0-12	1.0-5.0
Terylene Cotton Canvas	Terylene Cotton	Cotton	3-12	300-2000	1-300	2.0-12	1.0-5.0
Note: Belt Cover thickness, fabric ply and length can be made upon clients request.

Adhesive Strength Between Fabric Plies

Item	Between fabric	Cover between Carcass
Item	Between fabric	Cover thickness 0.8mm-1.5mm	Cover thickness ≥1.5mm
Ave of all test pieces, N/mm≥	3.2	2.1	2.7
Peak Min. of all test pieces, N/mm≥	2.7	1.6	2.2
Note: Peak Max. of all test pieces =20N/MM

Packaging & Shipping

Except good raw material, good production equipments and technology, the safe and user-friendly packing is also very important for sidewall belting. HYRUBBERS have been packing conveyor belt in standard way to ensure the belt is safe during transportation and storage period.

packaging:packed in rolls and covered by fabric water-proof cloth,or clients' requirement also be respected

shipping:within 10-20 days,or depends on the quantity

Company Information

HYRUBBERS CO.,LTD is specializing In manufacturing, exporting and developing conveyor belt, in the same time rubber sheet, rubber tiles and so on.

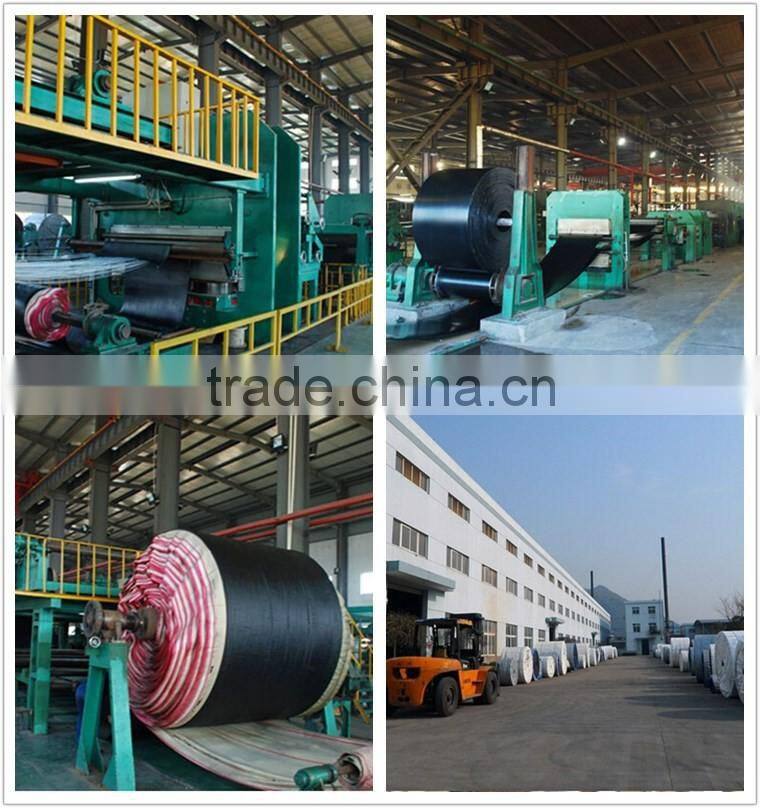

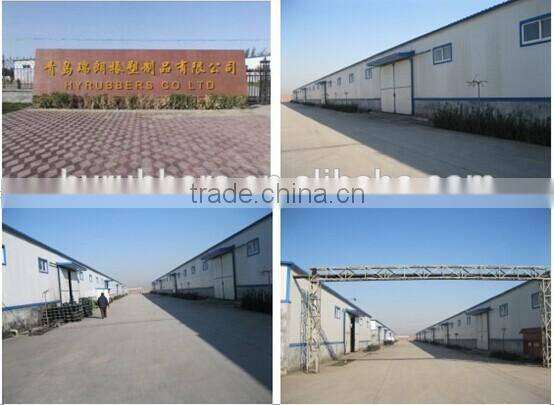

The factory founded has 260 people including 220 workers, and 15 engineers and technicians, 25international sales workers, covering an area of 50000 m2, owing 220 sets of main production equipment.

The ISO9001: 2000 certified factory has established a stable and reliable quality control system with a modem management.

Now with the export quantity larger and larger, we become one of the biggest manufacture in North of China.

Specification and technical data of multi-ply cotton,polyester cotton conveyor belt:

Fabric
type

Fabric
structure

Fabric
specs

Ply thickness
(mm/P)

(N/mm)
Strength series

(mm)
Cover thickness

Winth
mm

Length
m

Warp

Weft

2ply

3 ply

4ply

5ply

6ply

Upper

Lower

Cotton
(CC)

Cotton
(C)

CC-56

1.10

112

168

224

280

226

2-8

0-4.5

400-2500

<=300

Polyester
Cotton
(TC)

Polyester Cotton
(TC)

Cotton
(C)

TC-70

1.0

140

210

280

350

420

1.5-8

0-4.5

400-2500

<=300

Cover properties of the belts:

Cover grade

Tensile strength
>=

Elongation
>=

Abraion
>=

Change rate of tensile strength and elongation after aging

Mpa

mm³

Light (L)

350

300

200

250

-30~+30

Adhesion and elongation of the belt:

Belt carcass	Adhesive strength			Elongation
	Between piles N/mm	N/mm Between rubber and carcass		Longitudinal Elongation at break %>=	Longitudinal elongation %<=
		Rubber thickness<=1.5mm	Rubber thickness>1.5mm
Cotton and T/C canvas	>=2.70	>=2.4	>=2.7	10	4

Accordance with different applications, we can produce different grades of belt as following:

1) Heat Resistant Belt

According to the temperature of working environments, we can manufacture 3 different grades heating resistant belt, including up to 120℃ grade (HR120), up to 150℃ grade (HR150), up to 180℃ grade (HR180) and up to 200℃ grade (HR200) .Generally used by cements and steel works.

2) Abrasion Resistant (≤90mm3) / super abrasion resistant (≤60mm3) Belt

Generally used for transport the hard or shaped materials, like iron ore, diamond, copper and other minerals.

3) Oil Resistant Belt

Generally used for wood, papermaking, oil-based grain transportation.

4) Acid/Alkali Resistant Belt

Always used in Chemical materials transportation.

5) Cold Resistant Belt

The belt can work in some cold environment, like Northeast of China, Russia and North European countries.

6) Fire Resistant Belt

Always used in underground coal mining, steel works and so on.

7) conventional Belt

Generally used for small powder, grain and block materials.

FAQ

Why you choose us?

1.Super high quality.

2.Competitive price.

3.Good producing equipment and technology.

4.Large production ability.

5.Prompt delivery.

6.Small order accepted.

7.Excelent sale and after-sale service.

8.OEM available.

Is the product sample available?

Yes,all product samples are available for you to test the quality.

Is OEM available?

Yes,OEM is available.We have professional designer to help your brand promotion.

Are the products tested before shipping?

Yes,all of our products were qualified before leave the factory,we test every batch every day.

Delivery details?

Within 10-20 days in general or depends on quality of the order.

Packaging details?

Packed in rolls and covered by nylon water proof cloth.Clients' requirement are also respected.

What's the quality guarantee?

We have totally quality guarantee to customers,we will be responsible for any quality problems.
