Product Details

Place of Origin	Shandong, China		Brand Name	Hyrubbers
Model Number	Nylon Conveyor Belt

Product Description

Nylon is one of the high quality synthetic fibers in rubber industry nowadays. The nylon canvas is woven by nylon fibers both in warp and in weft. It is the most widely used fabric in rubber industry.
Nylon conveyor belts with nylon canvas have the following merits:
1) high abrasion resistance, high tensile strength and good fatigue resistance;
2) thin belt body, high tensile strength, good anti-shock, good troughability, high adhesion between plies, splendid flexibility and long working life.
Usage:

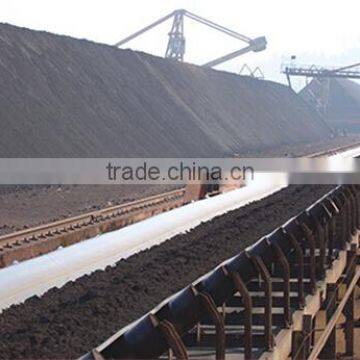

Nylon conveyor belts are fit for medium, long-distance and heavy-load transportation of materials, widely used in mining, metallurgical, architectural industry, ports, etc.

Standards:
GB/T 7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc

Types:
Besides General-used Nylon Belt, there are Fire-resistant type, Cold-resistant type, Wear-resistant type, Heat-resistant type, Acid and alkaline resistant type,Oil-resistant type, Antistatic electricity type,High-grade type and etc.

Structure:
It uses nylon canvas as carcass, its structure is the same as that of General-used Conveyor Belt.

Fabric Material	Fabric structure		Fabric code	No.of fabric plies	Width mm	Length m	Cover thickness mm
	Warp	Weft					Cover thickness mm
	Warp	Weft					Top	Bottom
Nylon Canvas	Nylon	Nylon	NN100	2-10	350-2000	1-300	2.0-12	1.0-5.0
			NN150	2-10	350-2000	1-300	2.0-12	1.0-5.0
			NN200	2-10	350-2000	1-300	2.0-12	1.0-5.0
			NN250	2-10	350-2000	1-300	2.0-12	1.0-5.0
			NN300	2-6	350-2000	1-300	2.0-12	1.0-5.0
			NN400	2-6	350-2000	1-300	2.0-12	1.0-5.0
			NN500	2-6	350-2000	1-300	2.0-12	1.0-5.0
			NN600	2-4	350-2000	1-300	2.0-12	1.0-5.0
Note: Belt Cover thickness, fabric ply and length can be made upon clients request.

Adhesive Strength Between Fabric Plies

Item	Between fabric	Cover between Carcass
Item	Between fabric	Cover thickness 0.8mm-1.5mm	Cover thickness ≥1.5mm
Ave of all test pieces, N/mm≥	4.5	3.2	3.5
Peak Min. of all test pieces, N/mm≥	3.9	2.4	2.9
Note: Peak Max. of all test pieces =20N/MM

Packaging & Shipping

Except good raw material, good production equipments and technology, the safe and user-friendly packing is also very important for sidewall belting. HYRUBBERS have been packing conveyor belt in standard way to ensure the belt is safe during transportation and storage period.

packaging:packed in rolls and covered by fabric water-proof cloth,or clients' requirement also be respected

shipping:within 10-20 days,or depends on the quantity
