Usage:
Due to the space limitation or in case of elevating materials at a large slope, sidewall conveyor belt is often used to prevent the scatter of conveying materials. IIt is an effective way of lifting  materials in confined sape. It is fit  for conveying materials at a large slope between 0°C ~ 90°C.
Characteristics:
1. Materials can be conveyed at a large slope in about 90 degree angle.
2. Wide rang materials ( large capacity )can be handled and can not be scattered.
3. The slope of conveying can be raised from horizontal to sloping or from sloping to horizontal.
4. The conveyor is simple in structure, flexible in arrangement and less space  requirement.
Attention:
The carcass material and strength of the belt can be selected according to the requirements of users

HYRUBBERS corrugated sidewalls represent the latest in design ideas and manufacturing techniques.The Sidewall design ensures maximum flexing without fatigue, the profile has excellent vertical stability for load retention and return side support. The design allows for high compression to ensure smooth inner deflection around small radii. Another important design feature is that the sidewalls can be pressed from both sides when mounting, this offers much higher bond strengths and security.

The width of sidewall conveyor belt that thecorporation can provide is no more than 3100m.

We can provide such products as conventional-type,heat-resistant type,cold-resistant type,acid and alkali resistant type,static electricity,conductive-type,high-temperature resistant type(<=150 c)and hygiene-type,etc.

The Conveyor belt with other type of sidewall or special charactres require,we could negotiate to trialmanufacture.

3.1 Application: Fit for conveing material under steeply inclination betoeen 0-90 degree.

3.2 Features:
1.The max.inclination angle can be upto 90 degrees when conveying materials.
2.Big converying ability and preventing materials from sliding off.
3.Easy to change the transportation angle either from level to inclination or from inclination to level.
4.Conveyor occupies small area.

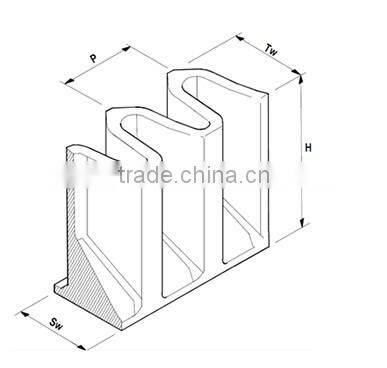

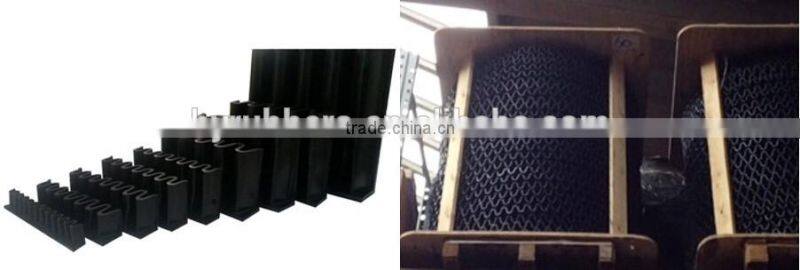

4.Sidewall and Cleat

Type S Standard construction in heights from 40mm to 120mm. Please require if fabric reinforcement is needed for this type.

Type MDSF Heavy duty construction including fabric reinforcement as standard in heights from 120mm to 300mm.The fabric reinforcement is of the diagonal type ensuring maximum flexibility with high vertical stability. If required these can be supplied without fabric reinforcement to special order.

Type HHDF Heavy duty special design including fabric reinforcement as standard in heights from 300mm to 630mm.

HYRUBBERS CO.,LTD is specializing In manufacturing, exporting and developing conveyor belt, in the same time rubber sheet, rubber tiles and so on. The factory founded has 260 people including 220 workers, and 15 engineers and technicians, 25international sales workers, covering an area of 50000 m2, owing 220 sets of main production equipment. The ISO9001: 2000 certified factory has established a stable and reliable quality control system with a modem management. Now with the export quantity larger and larger, we become one of the biggest manufacture in North of China.

 Why you choose us?

1.Super high quality.

2.Competitive price.

3.Good producing equipment and technology.

4.Large production ability.

5.Prompt delivery.

6.Small order accepted.

7.Excelent sale and after-sale service.

8.OEM available.

Is the product sample available?

Yes,all product samples are available for you to test the quality.

Is OEM available?

Yes,OEM is available.We have professional designer to help your brand promotion.

Are the products tested before shipping?

Yes,all of our products were qualified before leave the factory,we test every batch every day.

Delivery details?

Within 10-20 days in general or depends on quality of the order.

Packaging details?

Packed in rolls and covered by nylon water proof cloth.Clients' requirement are also respected.

What's the quality guarantee?

We have totally quality guarantee to customers,we will be responsible for any quality problems.
