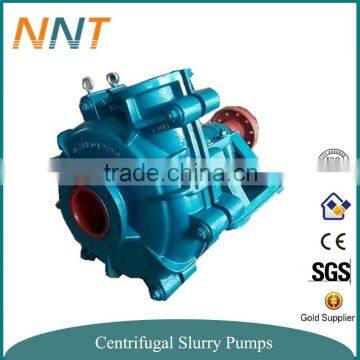

Centrifugal Coarse Sand Handling Mud Slurry Pump

Centrifugal Coarse Sand Handling Mud Slurry Pump

Point1.1:Pump Overview

Size range (outlet):----- 1'' to 18'' (25 mm to 450 mm)

Capacity:-------------- up to 22,000 gpm ( 5,000 m3/hr )

Head: -----------------up to 240 ft (73 m )

Pressure: --------------up to 300 psi (2,020 kPa)

Point 1.2: Pump Features

1).  Cantilever, horizontal centrifugal slurry pump

2).  Better wear-resistance and corrosive resistance

3).  Frame plate for type pumps have replaceable wear-resistant metal( high chrome alloy ) liners

      or rubber liners. Impeller material : high chrome alloy or Natural rubber .

4).  In allowable pressure range, it can be used in series in stages, and allowable

      maximum working pressure is 3.6Mpa.

5).  Expeller seal, mechanical seal and packing seal are available .

6).  The discharge branch can be positioned at interval of 45 degrees by request and oriented

      to any eight positions to suit installations and applications.

7). To adapt to convey heavy abrasion, high concentration dreg , NH slurry pump's body is

     used double-deck construction , in other words, being made of inside lining and outside shell.

 Point 1.3: Pump Models and Dimensions

Point 1.4 : Pump Pictures

                                                                            Drive Type

                                                                        Finished Pumps

                                                        Manufacturing Processing

This Series of Pumps are used conveying abrasive or corrosive slurry, especially clinker of power plants in

electric power, metallurgy, mining, coal, building materials, chemical industry and other industrial sectors,etc.

Shijiazhuang Nainater Slurry Pump Co., Ltd is a modern pump industry enterprise engages in professional

manufactore, scientific research, develop, sales and service.

Our company is specialized in manufacturing: Slurry pump and Slurry pump parts, Dredging pump and

Dredging pump parts, Desulfurization pump and Desulfurization pump parts, Clean water pump and Sewage

pumps, are widely used in mine, metallurgy, coal, electric power ,dredge and other sectors of the national

economy. These pumps are sold to South America, Africa, Southeast Asia, Russia and so on more than

20 countries and regions. Our products have won unanimous favorable comments from the market.

The quality management systems of Nainater slurry pump are accredited to ISO 9001:2000 and our

environmental management systems are accredited to ISO 14001:2004.
