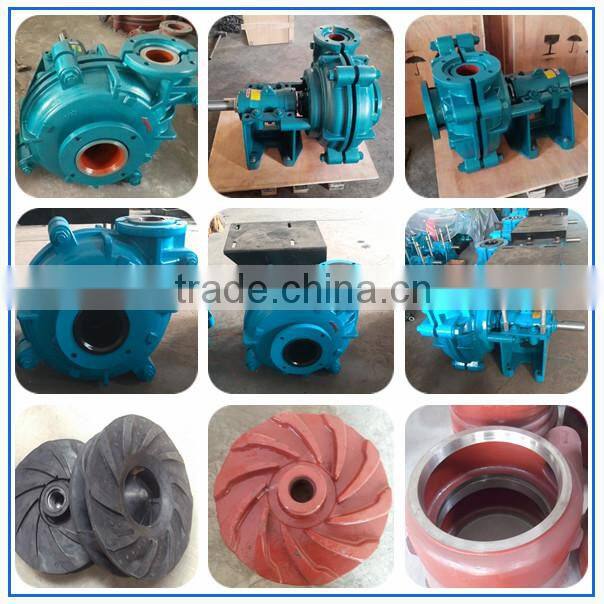

Be adapt to covey heavy abrasion,high concentration dreg, NH slurry pump's body is used double-deck structure,in other words, being made of inside lining and outside shell.

1, Bearing assembly – a large diameter shaft with short overhang minimizes deflection and contributes to long

    bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.

2, Liners – easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of

    maintenance. Hard metal liners are completely interchangeable with pressure molded elastomer. Elastomer seal

    rings back all liner joints.

3, Casing – Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure

    capabilities and an extra measure of safety.

4, Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard

    metal and molded elastomer impellers are completely interchangeable. Cast in impeller threads require no inserts

    or nuts. High efficiency and high head designs are also available.

5, Throatbush – wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive

    accurate alignment during assembly and simple removal.

6, One-piece frame – a very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An

    external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller

    clearance.

There are three types of shaft seal for choose, expeller seal, packing seal and mechanical seal.

A wide variety of impellers and shaft seals provide a perfect fit for a wide range of applications. The NH slurry pump provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. The NH slurry pump provides a complete selection for most all duties in the mill. From cyclone feed to regrind, flotation and tailings, the NH slurry pump is the best choice.

Notation & Explanation

 For example:6/4E-NH

6: Suction diameter (inch)

4: Discharge diameter (inch)

E: Base type

NH: Heavy abrasive slurry pump

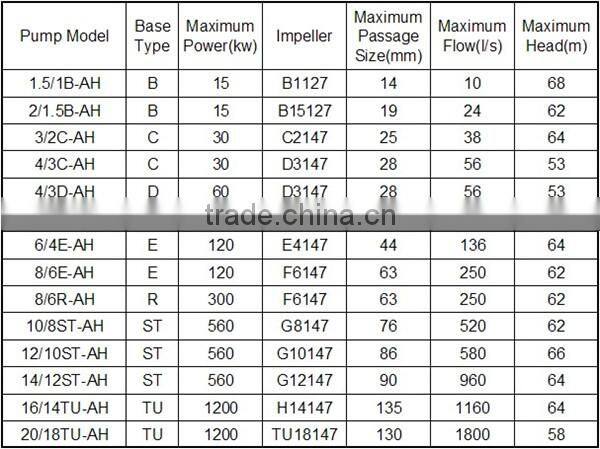

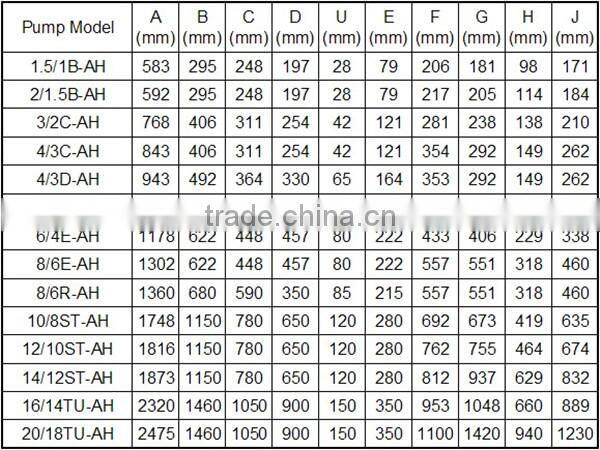

Performance & Dimensions

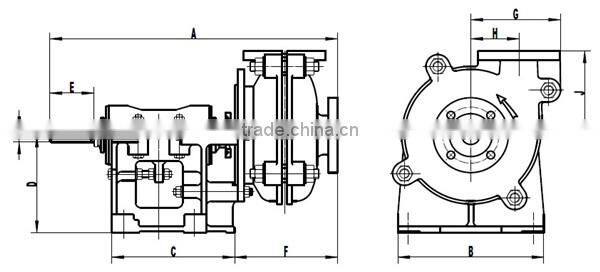

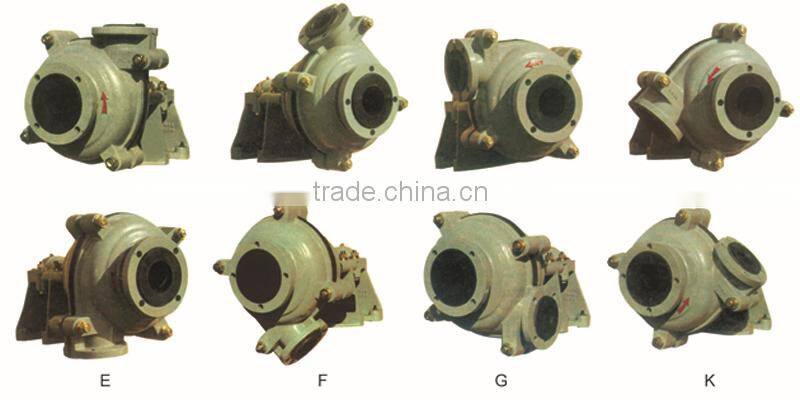

The discharge can be oriented to any eight positions by 45 degrees to suit installations and applications.

There are the drive types, including but not limited to the follows.

Manufacturing Process

 Because we are a slurry pump Original Equipment Manufacturer (OEM) with performance curves and original drawings, we know the exacting tolerances and engineering standards required to build and maintain these slurry pumps.

We have advanced and complete production line, respectively the casting, heat treatment, machining, product assembly workshops.

Quality Management

 The quality management systems of Nainater slurry pump are accredited to ISO 9001:2000 and our environmental management systems are accredited to ISO 14001:2004.
