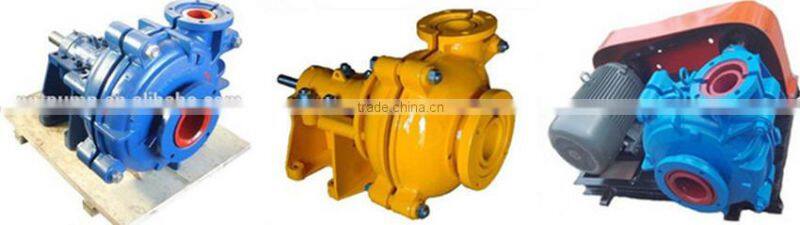

Wear Resisting Centrifugal Ash Slurry Pump Sand Pump

Wear Resisting Centrifugal Ash Slurry Pump Sand Pump

Paramters

Size range (outlet):----- 1'' to 18'' (25 mm to 450 mm)

Capacity:-------------- up to 22,000 gpm ( 5,000 m3/hr )

Head: -----------------up to 240 ft (73 m )

Pressure: --------------up to 300 psi (2,020 kPa)

Overview

  NNT BRAND Type of NH series centrifugal slurry pumps are cantilevered,horizontal,slurry pumps.

1. They are designed for the handling highly abrasive, high density slurry in the metallurgical, mining, coal,

    power, building material and other industrial departments etc.

2. The pumps of this type also can be installed in multistage series.

3. The frame plates for type NH centrifugal slurry pumps have replaceable wear-resistant

     metal liners or rubber liners.

4. The impellers are made of wear resistant chrome alloy or rubber.

5. The frame plate liner and impeller for HH pump are adoptable of wear-resistant metal only .

6. The shaft seals for type NH centrifugal slurry pumps can be adoptable of gland seal or expeller seal.

Structure

Details

1. The wet parts for slurry pump are made of wear-resistant high chromium alloy.

2. Slurry pump's bearing assembly use cylindrical structure, adjusting the space between impeller

    and front liner easily. They can be removed completely when being repaired. Bearing assembly

    use grease lubrication.

3. The shaft seal could use the packing seal, expeller seal and mechanical seal.

4. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to

    any eight positions to suit installations and applications.

5. There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and

    frequency conversion drive devices for the slurry pump.

6. Wide performance, good NPSH and high efficiency. The slurry pump can be installed in multistage

    series to meet the delivery for long distance.

1).  Cantilever, horizontal centrifugal slurry pump

2).  Better wear-resistance and corrosive resistance

3).  Frame plate for type pumps have replaceable wear-resistant metal ( high chrome alloy )  liners or rubber liners. Impeller material : high chrome alloy or Natural rubber .

4).  In allowable pressure range, it can be used in series in stages, and allowable

maximum working pressure is 3.6Mpa.

5).  Expeller seal, mechanical seal and packing seal are available .

6).  The discharge branch can be positioned at interval of 45 degrees by request and oriented

 to any eight positions to suit installations and applications.

7).  To adapt to convey heavy abrasion, high concentration dreg ,  slurry pump's body is

 used double-deck construction , in other words, being made of inside lining and outside shell.

For example:  6/4E-NH

  6:------------Suction diameter (inch)

  4:------------Discharge diameter (inch)

  E:-----------Base type

  NH:---------Heavy abrasive slurry pump

This Series of Pumps are used conveying abrasive or corrosive slurry, especially clinker of power plants in

 electric power, metallurgy, mining, coal, building materials, chemical industry and other industrial sectors,etc.

Shijiazhuang Nainater Slurry Pump Co., Ltd is a modern pump industry enterprise engages in professional

 manufactore, scientific research, develop, sales and service.
Our company is specialized in manufacturing: Slurry pump and Slurry pump parts, Dredging pump and

 Dredging pump parts, Desulfurization pump and Desulfurization pump parts, Clean water pump and Sewage

 pumps, are widely used in mine, metallurgy, coal, electric power ,dredge and other sectors of the national

 economy. These pumps are sold to South America, Africa, Southeast Asia, Russia and so on more than

 20 countries and regions. Our products have won unanimous favorable comments from the market.

 The quality management systems of Nainater slurry pump are accredited to ISO 9001:2000 and

 our environmental management systems are accredited to ISO 14001:2004.
