100 ZGB Large Capacity Slurry Pump

Product Name : 100 ZGB Large Capacity Slurry Pump

Brife Introduction : Centrifugal Slurry Pump

 ZGB  series slurry pump is a single stage, single-suction centrifugal pump that is designed to transfort the strong abrasive and high concentration slurries or corrosive slurries in Power, Mining, Metallurgical, Coal, Building Material, and other industrial applications.

Model meaning :

100 Z G B (P)

100--discharge diameter (mm)

    Z--slurry pump

   G--high head

   B--series code

 (P)--mufti-stage in series (3-4 stages) (not marked for 1,2 stages)

Features :

 1). Excellent hydraulic performance, high efficiency and low abrasive rate.
2). Wide flowing channel, good anti-blocking performance, and superior NPSH performance.
3). Use thin oil to lubricating the bearings, reasonable lubrication and cooling system settings, to     ensure that the bearing can even work under the low temperature.
4). After special treatment, the pump can be used for corrosion and erosion working conditions of sea-water ash and sea-water pumping and salt spray and electro-chemical test.
5). Under the allowable voltage range, the pump can be operated in multi-stage series connection, and the max. Working pressure is 3.6Mpa.

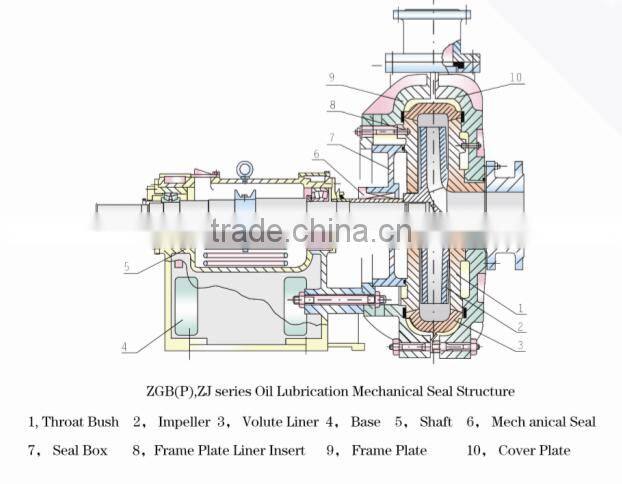

ZGB Slurry Pump Structure

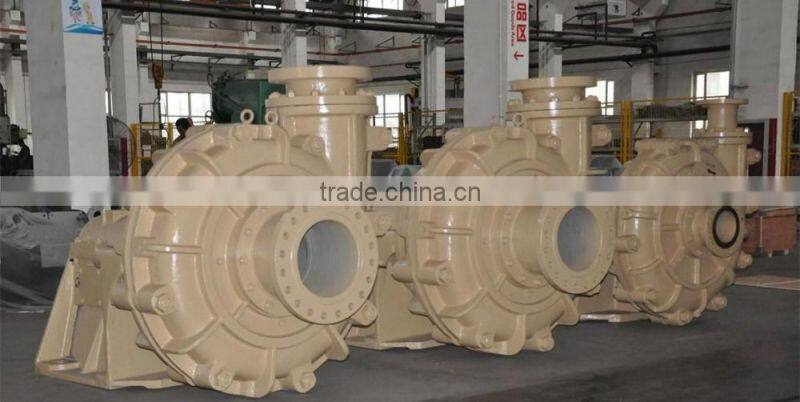

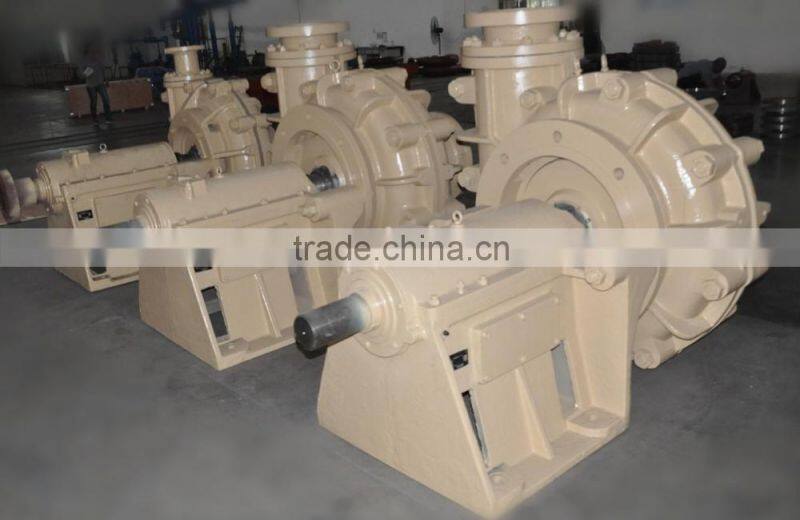

Products Show

Materials Test Machine: Orient Spectrometer

Applications

This Series of Pumps are used conveying abrasive or corrosive slurry, especially clinker of power plants in electric power, metallurgy, mining, coal, building materials, chemical industry and other industrial sectors,etc.

Manufacturing Workship

Meeting international standards

The quality management systems of Nainater slurry pump are accredited to ISO 9001:2000 and our environmental management systems are accredited to ISO 14001:2004.
