Home > Products > Fiber Laser Cutting Machine > precision components cutting machine fiber laser
precision components cutting machine fiber laser
USD $10,000 - $100,000
/ Set
1 Set(Min.Order)
- 200 Set / Sets per Month
- Qingdao Tianjin Guangzhou
- T/T Credit Card
You May Like
-
500W Cheap Fiber Metal tube laser cutting machine
-
easy operate fiber laser metal cutting machine
-
500W 1000W 2000W Fiber CNC Laser Metal Cutting Machine 1500X3000mm
-
Fiber laser metal cutting machine manufacturer
-
High precision metal laser cutting machine 200W fiber
-
2000w metal fiber laser cutter machine manufacturer
Product Details
| Condition | New | Laser Type | Fiber Laser | |
| Applicable Material | Metal | Cutting Thickness | 0.1-10mm | |
| Cutting Area | 1500*3000mm | Cutting Speed | 25m/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | Cypcut operation system | Graphic Format Supported | AI, BMP, DST, DWG, LAS, PLT | |
| Place of Origin | Shandong, China | Brand Name | Bodor | |
| Model Number | BCL-FB | Certification | CE, SGS, Other, CE, SGS, FDA,BV | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
Product Description

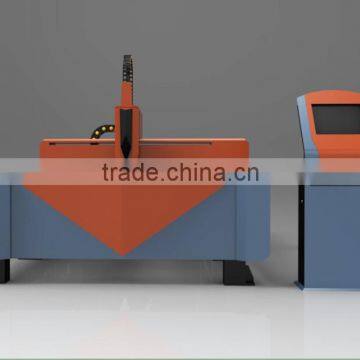

Precision Components Cutting Machine
Main Features:
1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.
Technical Parameter:
| Model | BCL 1530FB | BCL 1540FB | Option |
| Max cutting range | 1500*3000mm | 1500*4000mm | According to Demands |
| Machine Size(Length*Width*Height) | 2.4*4.7*1.9m | 2.4*5.7*1.9m | |
| Accessory Parts(Length*Width*Height) | Chitler 1*1*1.2m Control Box 1*0.8*1.8m Fiber Module 0.5*0.6*0.14m | ||
| Laser Medium | SingleCoreJunctionSemiconductorModule | ||
| Max Cutting Speed | 25m/min | ||
| Cooling Way | Water Cooling | ||
| Laser Power | 500W(Option 200W/300W/400W/1000W/2000W) | ||
| Min line width | 0.1nm | ||
| Cutting Depth | 0.2-6mm | ||
| Driving and transmission Way | Imported Servo Motor and Linear Guide Rail | ||
| Power Requirements | 380V/50Hz/16A | ||
| Continuous Working Time | 24Hours | ||
| Related Weight | Machine Body 2732kg Trolley 116kg Computer Cabinet 56kg Servo Cabinet 75kg Transformer 77kg Chiller 93kg Fiber Module 50kg | ||
Application:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
Mainly used for cutting Mild steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminium zinc plate, copper and many kinds of metal materials and so on.
Mainly used for cutting Mild steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminium zinc plate, copper and many kinds of metal materials and so on.
