SRCC&EN12975 high quality pressurized vacuum tube solar collector with heat pipe

FOB Price

USD $200 - $500 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

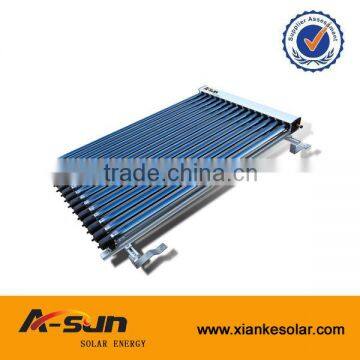

Pressurized vacuum tube solar collector with heat pipe
1.bear temp.-35 degree,0.6Mpa
2.SRCC&TUV
3. 3D installation CD

Vacuum tube with heat pipe solar collector, SRCC solar collector with heat pipe

Feature:

1. there is no water in the vacuum tube, the system can work as usual if one tube is broken.

2. operation pressure is 0.7 Mpa, and the test pressure is 1.0 Mpa.

3. it is used with existed tank in the basement.

4. the frame can be installed on the flat roof or inclined roof.

Solar thermal collector Mateial Details
Solar thermal collector Model	XKPC-58-1800
Flow type	Heat pipe
Heat pipe material	TU1 copper
Heat pipe size	Top: Ø14* 1mm or Ø24* 1mm; Body: Ø8* 0.7mm
Tube diameter	φ58/1800mm
Solar vaccum glass tube	High borosilicate
Coating of absorber on glass tube	Cu/SS-ALN(H)/SS-ALN(L)/ALN
fins around heat pipe	single long Aluminum(1.6m)
Manifold pipe material	TU2 copper (Ø35x0.8mm for 14mm heat pipe or Ø38x0.8mm for 24mm heat pipe
Manifold casing material	6063 Aluminum alloy frame(1.8mm)
Insulation material in manifold casing	Rook wool or PU
Thickness of insulation(mm)	45
Density of insulation (kg/m3)	93
Frame material	6063 Aluminum alloy frame(2mm)
Frame and manifold casing finish	Black Powder coated or Argentine
Sealing Materials	EPDM

Technical data of SRCC solar collector
Solar thermal collector Model	XKPC-58-1800
Numbers of tube(pcs)	30	25	20	15
Absorber area approx.(m2)	2.493	2.0325	1.626	1.2195
Gross size(m)	2.05×1.45×2.1	2.05×1.45×1.945	2.05×1.45×1.57	2.05×1.45×1.19
Weight Empty(kg)	93	80	63	48
Hydraulic Connections	G3/4" male thread/22mm
Packages each unit (tubes/manifold casing/frame in cartons)	3ctns/1ctn/1ctn	2ctns/1ctn/1ctn	2ctns/1ctn/1ctn	1ctns/1ctn/1ctn
Loading qty in 20 GP/40GP/40HQ	63/130/145	82/170/200	90/185/210	133/276/325
Fluid volume(L)	1.7	1.5	1.2	0.9
Min. volume flowrate per collector(L/H)	108	90	72	54
Rated volume flowrate per coll.(L/H)	180	150	120	90
Max. volume flowrate per collector(L/H)	1200	1200	1200	1200
Maximum operation pressure(Bar)	6
Test pressure(Bar)	12
Heat transfer fluid	Anti-freeze Fluid (Water-Glycol)
ing temp.(°C)	229
Hot water(L/Day)	240	200	160	120
ΔT	35°C(Radiation>=800w/m2.day)
Collector efficiency	76.40%		76.20%
Medium	Pure water
Start-up Temperature of heat pipe	≤30°C
Warranty	5 years
