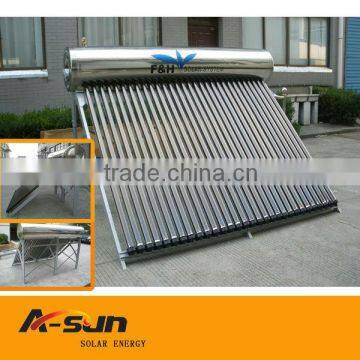

compact pressurized solar water heater with heat pipe solar vacuum tube

FOB Price

US$ 300 - 1,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

compact pressurized solar water heater with heat pipe solar vacuum tube
1)ISO, CE, SGS
2)0.7Mpa&temp -35
3)installation CD

compact pressurized solar water heater with heat pipe solar vacuum tube

Details of compact pressurized solar water heater
Water tank	Inner tank	Diameter 360mm, SUS304/2B or SUS316L stainless steel with thickness 1.2mm to 2.5mm
	Outer tank	Diameter 460mm, zinc coating steel or stainless steel
	Insulation	Polyurethane(PU), K = 97% ,40kgs/m
	Water inlet and outlet	SUS304/2B Stainless steel, 1/2"
	Heat pipe connection	Brass connector
	Temperature Sensor size	0.25"
Performance	Testing pressure	≤1 Mpa
	Working pressure	≤0.7 Mpa
	Daily efficiency	55%
	Heat preservation	72-80hs
T/P vavle	brass, ¾"
	Maximum working pressure	0.6Mpa
	Permissible temperature	120°C
Electrical heater	material	stainless steel
	dimesion	47mm/1.5"
	power	1500W, 220V/50HZ
Frame	glavanized coating steel with thickness 1.5mm, angle 25°/38°/45°/50°
Bolts and nuts	stainless steel

compact pressurized solar water heater with heat pipe solar vacuum tube

compact pressurized solar water heater with heat pipe solar vacuum tube

Specification of heat pipe solar collector
Vacuum tube	Tube length	1800mm(Actual length to tip = 1810-1830mm)
	Outer tube dimensions	Æ58mm x 1.6mm / Æ2.28” x 0.063”
	Inner tube dimensions	Æ47mm x 1.6mm / Æ1.85” x 0.063”
	Weight	2kg / 4.4pounds
	Solar tubes material	Borosilicate Glass 3.3
	Solar tube coating	Cu/SS-ALN(H)/SS-ALN(L)/ALN
	Thermal expansion	3.3x10-6°C
	Absorptance (a)	>92%(AM1.5)
	Emittance	<8%(80°C)
	Vacuum	P<5x10-3
	Heat loss	<0.8W/ (m2 °C)
	Maximum strength	0.6Mpa
	Absorber area per tube	0.08M2
Heat Pipes & Heat Ttransfer Fins	Length	1700mm
	Material	Oxygen Free copper (Tu1) Cu+Ag> 99.99% (O2 <16ppm)
	Copper pipe dimesnion	Æ14mmOD x0.75mm thick
	Heat transfer material	Glycol and Water
	Max working temperature	300°C
	Startup tempreature	<30°C
	Vacuum	P<5x10Pa
	Vertical installation angle	20-70°
	Horizontal installation angel	0+/- 5°
	Heat transfer fins	0.2mm thick Hot Dipped Aluminum

Rubber Components
Material	Silicone rubber
Density	1.15 g/cm3+/- 0.05
Durometer Hardness(Shore A)	54
Elongation	300%
Rebound	54%
Maximum working termpeature	270°C
Tensile Strength	6.1Mpa
Trea Strength	12KNM
