Home > Products > Our showroom products > hot selling non-pressure solar hot water heater system

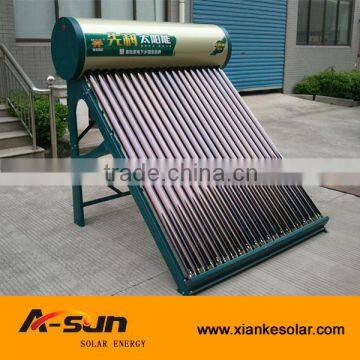

hot selling non-pressure solar hot water heater system
USD $95 - $500
/ Set
1 Set(Min.Order)
- 100000 Set / Sets per Month
- Shanghai
- T/T
You May Like
-
compact pressurized solar water heater with heat pipe solar vacuum tube
-
non-pressure vacuum tube solar collector for large-scale solar project
-
SRCC&EN12975 high quality pressurized vacuum tube solar collector with heat pipe
-
2013 hot sale vacuum tube solar collector with heat pipe approved by TUV/SRCC
-
Solar Keymark/SRCC certificate solar collector with heat pip
-
popular evacuated tube solar thermal collector with heat pipe for water heating
Product Details
| Type | Evacuated Tube | Pressure | Unpressurized | |
| Circulation Type | Direct / Open Loop (Active) | Heating System | Thermosyphon (Passive) | |
| Connection Type | Direct-Plug | Installation | Other, roof mount | |
| Housing Material | Other, zinc-painted steel | Certification | CE, Other, CE, ISO | |
| Place of Origin | Zhejiang, China | Brand Name | A-sun | |
| Model Number | XKNP |
Product Description
Specifications
high efficiency non-pressure solar water heater1. mounted on the roof
2. hot water for 72 hours
3. OEM available
Our Services
Packaging & Shipping
Product Description
Company Information
FAQ
Hot selling non-pressure solar hot water heater system
Feature:
1. the coating inside of the vacuum tube absorbs the solar energy.
2. water inside of the vacuum tube is heated by the coating layer.
3. the vacuum tubes insert into the non-pressure tank, so the hot water and cold water can circulate by themselves because of different density.
4. non-pressure tank with PU layer keeps the water hot and store the water.
5. open loop type, hot water is supplied to the shower room because of water drop.
6. easy to install and high heat transfer rate over 95%.
7. if add the feeder tank, it could load the water automatically and reduce the water pressure.
8. it is also applied in the water supply system with big storage tank and widely used in Middle East, South America
| Product Model | XKNP58-1800 |
| Vacuum tube | 58-1800mm co-axial structure high borosilicate 3.3 glass vacuum tube with tube wall thickness of 1.8mm. |
| Inner tank | diameter 360mm, SUS304-2B Stainless Steel with thickness of 0.4/0.5/0.6mm |
| Outer tank | dia.460mm, zinc-painted steel plate 0.4mm |
| Frame | zinc steel painted plate 1.5mm, 0°,25°,38°,45° |
| Capacity of water tank | 90-324L, 40L/person for Max consumption |
| Heat preservation layer | high pressure automatic polyurethane foaming layer with thickness of 50mm |
| Inlet/outer/air vent | SUS304/2B stainless steel, ½ inch or ¾ inch |
| Assistant tank | 5L/8L/10L/20L |
| Bolts and nuts | stainless steel |
| Optional accessories | Controller, electric heater, assistant Tank, magnesium rod |
| Test pressure | 0.05Mpa |
| Working pressure | 0.025 Mpa |
| Heat preservation hours | 48-72 hours |
| Hailstone resistance | Dia≤25mm |
| Guaranty | 3 years for Water tank, 5 years for vacuum tube and frame |
| Min Order | 1 set |
| Sample regulation | Client should pay product cost and sea freight |
hot selling non-pressure solar hot water heater system
| Model | Aperture area(M2) | vacuum tube | volume(L) | packing volume(m³) | Gross wet(KGS) | container loading(set) | ||||
| dia(mm) | length(mm) | qty(pcs) | 20GP | 40GP | 40HQ | |||||
| XKNP58-1800-15 | 2.1 | 58 | 1800 | 15 | 135 | 0.58 | 56 | 43 | 93 | 117 |
| XKNP58-1800-18 | 2.51 | 58 | 1800 | 18 | 162 | 0.68 | 67 | 36 | 79 | 100 |
| XKNP58-1800-20 | 2.92 | 58 | 1800 | 20 | 180 | 0.73 | 75 | 34 | 73 | 93 |
| XKNP58-1800-24 | 3.33 | 58 | 1800 | 24 | 216 | 0.88 | 89 | 28 | 61 | 77 |
| XKNP58-1800-30 | 4.14 | 58 | 1800 | 30 | 270 | 1.06 | 111 | 23 | 50 | 64 |
| XKNP58-1800-34 | 4.76 | 58 | 1800 | 34 | 306 | 1.22 | 126 | 20 | 44 | 55 |
| XKNP58-1800-36 | 5.04 | 58 | 1800 | 36 | 324 | 1.31 | 130 | 19 | 41 | 51 |
