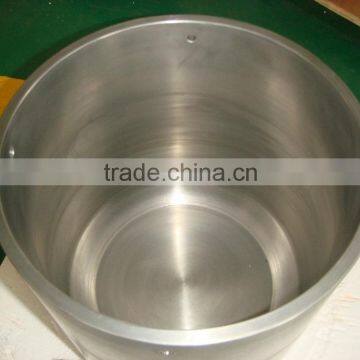

pure tungsten crucible

Description:
Sintered tungsten crucible, thanks to its resistance to certain molten metals and metal oxides, is widely used in many fields. They can be applied in technologies for growing monocrystals from molten corundum. Also they are used for thermal vaporization and deposition of various substances in electronics.

Features:
1.The overall density of sintered tungsten crucible is fairy high between 18g/cm³ to 18.3g/cm³;
2.Its chemical purity of sintered tungsten crucible can be above 99.95%;
3.The diameter of sintered tungsten crucible can be above 200mm;
4.The surface roughness of tooled crucibles does not exceed Rz 6.3;
5.The use temperature of sintered tungsten crucible should be below 2450ºC in vacuum or deoxidize atmosphere.
6.The shapes and dimensions of crucibles are also made in accordance with customers' requirements.

Parameter of Sintered Tungsten Crucible:

Package and Inspection:
Every tungsten crucible is under strict nondestructive test and density detection. We offer material composition sheet and examination report of the sintered tungsten crucible. We also pack the crucibles in shock and moisture-proof plywood case independently.

Notice:
1.Before use, it is recommended that the consumer anneal (de-gas) crucibles in a vacuum without batch charging;
2.In a furnace, the annealment process should be supported with a vacuum .
3.When preparing a sintered tungsten crucible for work, the consumer should not allow a sharp rise or fall in temperature, or abbreviate the recommended time periods for holding temperatures.

Achemetal Furance Co., Ltd. is a professional manufacturer and supplier of sintered tungsten crucibles in China. With rich experience in powder metallurgy coupled with a fully automated manufacturing process, we can produce 100 large sintered tungsten crucibles every month. Our crucibles and other products enjoy a large targeting market from Russia, Ukraine, United States, South Korea, Japan, Taiwan and China mainland.

1,Tungsten&molybdenum profiles (rods,bars,tubes,plates,sheets of tungsten,molybdenum and their alloys).

2,Balance weight of tungsten heavy alloy (for motors,watches,golf clubes ,propellers).

3,Power automotive industry (tungsten copper switches,contactors,tungsten contactors)

4,Magnetron sputtering targets (flat panel displays,photovoltaic).

5,Vacuum coating industry (evaporation boat,cathode,evaporation coils,crucibles)

6,Quartz,glass and rare earth smelting industry (electrode,spinning nozzle,crucibles)

7,Parts for medical equipment (collimator device of CT machine,mammography target of X ray machine).

8,Electronics industry (ion implantation components,MOCVD machine parts,electron gun parts)

9,Nuclear aerospace and military industry (carrying boat,radiation shield,tungsten crucible for renewable nuclear fuel,rocket nozzle,throat,penetrator).

10,Vacuum or gas protected high temperature furnace material (sintering furnace,monocrystalline furnace,annealing furnace)

  (1)Tungsten and molybdenum crucible(spinning,forging,sintering,welding),heating element.

  (2) Heat shield,shelves,tray,hooks,seed holder,cylinder,pallet,screw,nut.

  (3) Complete hot zone for sapphire crystal growth furnace (KY,ESG,CZ,HEM)

Achemetal Tungsten & Molybdenum Co., Ltd., located in Luoyang, Henan Province, China, is a manufacturer of tungsten and molybdenum specialty products. Our product line includes foil, sheet, plate, wire, rod, fabricated part as well as pressed and sintered part. Our products have been used in a wide range of industries, including electronics, lighting, semiconductor, automobile, fiberglass, aircraft, medical and many others. We are committed to serve customers, helping our customers and working with our customers to succeed in the ever challenging market.
