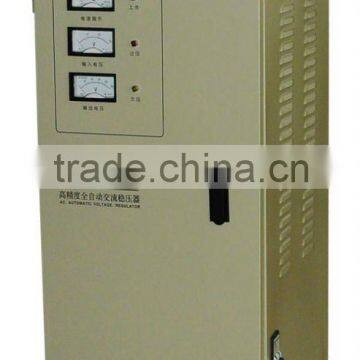

SVC(TND)-15K High-Precision Automatic AC Voltage Stabilizer
- 50000 Piece / Pieces per Month
- NINGBO/SHANGHAI
- Credit Card
You May Like
-
SVC(TND)-30K High-Precision Automatic AC Voltage Stabilizer
-
SVC(TND)-50K High-Precision Automatic AC Voltage Stabilizer
-
SBW.DBW Automatic Compensated Power Voltage Stabilizer
-
SBW.DBW Automatic Compensated Power Voltage Stabilizer
-
TSD Series servo AC voltage stabilizer
-
TSD Series servo AC voltage stabilizer
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SENTAI | |
| Model Number | Automatic Voltage Regulator SVC(TND)-20K | Usage | SVC | |
| Phase | Three Phase | Current Type | AC |
STANDARD EXPORT PACKING
Product Description
Specifications
1.SVC(TND)-20K single phase Automatic Voltage Stabilizer2.Input voltage:160-250V
3.Output voltage:220V
4.Warranty:1 Year
SVC(TND)-20Ksingle phase Automatic Voltage Stabilizer
SVC automatic voltage regulator employs variable auto-transformer, buck and boost transformer, AC synchronous motor, IC loop control system. It features small waveform distortion, high efficiency, and high power factor. It can be widely used in places where voltage is unstable.
SVC Three Phase automatic voltage stabilizers have all the functions of single phase automatic voltage stabilizer. The stabilizer has three meters to indicate three phase separately, and a select switch connected with voltage meter to shift and observe the voltage of each phase.
| Phase | Single Phase | Three Phase |
| Input Voltage | 160-250V | 280-430V |
| Output Voltage | 220(1±5%)V setable | 380(1±5%)V setable |
| Frequency | 50~60Hz | 50~60Hz |
| Accuracy | ±(1~5) setable | ±(1~5) setable |
| Response Time | ≤0.5s | ≤0.5s |
| Efficiency | ≥98% | ≥98% |
| Temperature | 0°C~+40°C | 0°C~+40°C |
| Humidity | ≤90% | ≤90% |
| Insulation Resistance | 50MΩ | 50MΩ |
Spec(KVA) | Product size | Package size | Weight | Qty | Spec(KVA) | Product size | Package size | Weight |
Qty | ||
Single-phase two-wire (desk type) | SVC-0.5 | 17*19*13 | 44*25*35 | 5.0 | 4 | Single-phase two-wire (vertical type) | SVC-5 | 29*24*40 | 31*29*48 | 28.5 | 1 |
SVC-1 | 20*22*16 | 50*28*40 | 7.0 | 4 | SVC-8 | 29 *24*42 | 40*35*52 | 39 | 1 | ||
SVC-1.5 | 20*22*16 | 50*28*40 | 8.0 | 4 | SVC-10 | 29*24*42 | 40*35*52 | 40 | 1 | ||
SVC-2 | 26*24*19 | 34*32*50 | 14 | 2 | SVC-15 | 40*33*65 | 48*45*90 | 75 | 1 | ||
SVC-3 | 29*22*24 | 62*38*34 | 16 | 2 | SVC-20 | 58*35*68 | 68*48*90 | 110 | 1 | ||
SVC-5 | 46*24*29 | 54*32*27 | 27 | 1 | SVC-30 | 53*43*102 | 64*53*112 | 165 | 1 | ||
SVC-8 | 57*27*24 | 71*40*35 | 40 | 1 | SVC-45 | 79*43*129 | 90*65*140 | 200 | 1 | ||
SVC-10 | 57*27*24 | 71*40*35 | 41 | 1 | SVC-60 | 79*43*129 | 90*65*140 | 250 | 1 | ||
SVC-1.5 | 40*36*17 | 52*48*28 | 18 | 1 | SVC-20 | 43*51*91 | 64*55*106 | 124 | 1 | ||
Three-phase four-wire | SVC-3 | 42*38*19 | 54*50*31 | 23 | 1 | Three-phase four-wire | SVC-30 | 43*51*91 | 64*55*106 | 131 | 1 |
SVC-4.5 | 42*38*19 | 54*50*31 | 27 | 1 | SVC-45 | 65*43*95 | 78*55*110 | 197 | 1 | ||
SVC-6 | 37*28*68 | 48*40*78 | 39 | 1 | SVC-60 | 77*55*100 | 90*67*115 | 260 | 1 | ||
SVC-9 | 35*33*78 | 48*45*90 | 48 | 1 | SVC-80 | 77*55*100 | 90*67*115 | 290 | 1 | ||
SVC-15 | 43*38*73 | 55*51*90 | 85 | 1 | SVC-100 | 77*55*100 | 90*67*115 | 350 | 1 | ||
