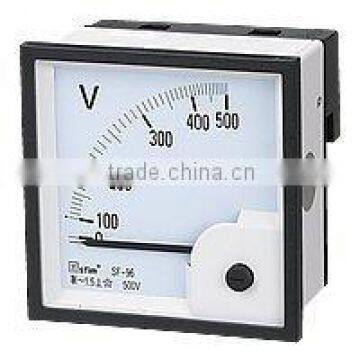

AC Voltage panel meter
- 0 per Month
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Model Number | SF-96-6,SF-72-6,SF-48-6 | |
| Display Type | Analog Only | Measuring Range | 30V,50V,75V,100V...600V... | |
| Accuracy Class | Class1.5 | Operating Temperature | 70 and 120 |
Standard export packing or as customers' requests
Product Description
Specifications
AC Voltage panel meterAccuracy:Class1.5
Specification:30V,50V,75V...600V,For 450-450KV,meter can use potential transformer...
AC Voltage panel meter(Square Type Moving Iron AC Voltmeters)
1. Feature: W/O cover on the movement(C), With cover on the movement(F)[the former is default].
2. Model: 90° SF-96-6, SF-72-6, SF-48-6.
> Measuring the alternative voltage with frequency ranging from 15Hz to 100Hz, these meters indicate true RMS values and are substantially independent of system waveform.The nominal mark is T.(br).
3. Accuracy: Class 1.5.
4. Specification: 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 450V, 500V, 600V. For 450-450KV, meters can use potential transformer with secondary voltage 100V or 110V.
5. Case: Non-combustile ABS plastic material is used for making SF series'external case,and PPO plastic material is used for SF series's base; while Non-combustible PC plastic material is used for making SFT series'external case and base. Both of which will not suffer deformity under long-term use at 70 and 120 respectively.
6. Mounting: SF series is flush mounting with bracket.
......More detailed products information or have further enqiury, welcome to contact us.
