High Temperature Steam Rubber Hose (competitive Price)
US$ 1 - 6
/ Meter
500 Meters(Min. Order)
- Shanghai tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Tiger | |
| Model Number | high-pressure rubber hose |
Product Description
Specifications
high pressure rubber hose1.high quality
2.Oil,fuel, water,and high pressure resistance
3..For conveying saturated steam
high pressure rubber hose
Application
1,Used in mine hydraulic support,oil exploration,crane transport,mining equipment,industrial and agricultural machinery, high pressure washer etc.
2,Carry hydraulic fluids such as ethanol,hydraulic liquid, mineral oil,fuel
oil,lubrication,water,emulsion,oil-water emulsion and air etc.
3,Handle severe high pressure applications where pressure or constant hydrostatic loads are present.
Features
A premium hardwall curb pump hose made with a special synthetic “ozone-resistant” cover compound which virtually eliminates weather checking. The wire-braid construction provides excellent kink resistance, low computer creep, and long service life.
Construction
tube: Nitrile synthetic rubber
cover: Black synthetic rubber
Temperature: -40°F to 140°F (-40°C to 100°C)
Details :
(1) Wire Braid Hydraulic hose series
| Hose code(Mpa) | Hose I.D(mm) | Hose O.D(mm) | Layer O.D(mm) | Max. Operation | Min. burst pressure | Min. bend radius(mm) | Unit Weight | |||
| MPa | PSI | MPa | PSI | Kg/m | Ib/ft | |||||
| 1-φ5-21 | 5±0.5 | 12.7±0.8 | 9.5±0.6 | 21 | 3043 | 63 | 9129 | 90 | 0.3 | 0.019 |
| 1-φ6-21 | 6±0.5 | 16±1.0 | 11.7±0.6 | 20 | 2898 | 60 | 8694 | 100 | 0.34 | 0.021 |
| 1-φ8-17.5 | 8±0.5 | 18±1.0 | 13.7±0.6 | 17.5 | 2536 | 52.5 | 7608 | 115 | 0.42 | 0.026 |
| 1-φ10-16 | 10±0.5 | 20±1.0 | 15.7±0.6 | 16 | 2318 | 48 | 6954 | 130 | 0.47 | 0.029 |
| 1-φ13-14 | 13±0.5 | 24±1.2 | 19.7±0.8 | 14 | 2028 | 42 | 6084 | 180 | 0.64 | 0.04 |
| 1-φ16-12 | 16±0.5 | 27±1.2 | 22.7±0.8 | 12 | 1739 | 36 | 1217 | 205 | 0.7 | 0.044 |
| 1-φ19-10 | 19±0.5 | 30±1.2 | 25.7±0.8 | 10 | 1449 | 30 | 4347 | 240 | 0.84 | 0.053 |
| 1-φ22-9 | 22±0.5 | 33±1.2 | 28.7±0.8 | 9 | 1304 | 27 | 3912 | 280 | 0.95 | 0.059 |
| 1-φ25-8 | 25±0.5 | 37±1.2 | 32.2±0.8 | 8 | 1159 | 24 | 3471 | 300 | 1.09 | 0.068 |
| 1-φ32-6 | 32±0.7 | 44±1.5 | 39.2±0.8 | 6 | 869 | 18 | 2607 | 420 | 1.38 | 0.086 |
| 1-φ38-5 | 38±0.7 | 50±1.5 | 45.2±0.8 | 5 | 725 | 15 | 3042 | 500 | 1.8 | 0.115 |
| 1-φ51-4 | 51±1.0 | 63±1.5 | 58.2±0.8 | 4 | 579 | 12 | 1737 | 630 | 2.8 | 0.175 |
| 1-φ64-2.5 | 64±1.0 | 75±1.5 | 71±0.8 | 2.5 | 362 | 7.5 | 1086 | 770 | ||
| 1-φ76-1.5 | 76±1.0 | 88±1.5 | 84±0.8 | 1.5 | 217 | 4.5 | 651 | 930 | ||
| 1-φ89-1 | 89±1.0 | 103±1.85 | 9.9±0.8 | 1 | 144.9 | 3 | 435 | 1100 | ||
| 1-φ102-0.8 | 102±1.0 | 115±1.5 | 111±0.8 | 0.8 | 116 | 2.4 | 348 | 1250 | ||
| 2-φ5-60 | 5±0.5 | 15±0.8 | 11.2±0.6 | 60 | 8694 | 180 | 26082 | 90 | 0.4 | 0.025 |
| 2-φ6-60 | 6±0.5 | 18±1.0 | 13.5±0.6 | 60 | 8694 | 180 | 26082 | 100 | 0.45 | 0.028 |
| 2-φ8-50 | 8±0.5 | 20±1.0 | 15.5±0.6 | 50 | 7245 | 150 | 21735 | 115 | 0.62 | 0.039 |
| 2-φ10-40 | 10±0.5 | 22±1.0 | 17.5±0.6 | 40 | 5796 | 120 | 17388 | 130 | 0.71 | 0.044 |
| 2-φ13-30 | 13±0.5 | 26±1.2 | 21.5±0.8 | 30 | 4347 | 90 | 13041 | 180 | 1.93 | 0.06 |
| 2-φ16-21 | 16±0.5 | 29±1.2 | 24.5±0.6 | 21 | 3043 | 63 | 9129 | 205 | 1 | 0.063 |
| 2-φ19-18 | 19±0.5 | 32±1.2 | 27.5±0.8 | 18 | 2608 | 54 | 7824 | 240 | 1.23 | 0.077 |
| 2-φ22-16 | 22±0.5 | 35±1.2 | 30.5±0.8 | 16 | 2318 | 48 | 6955 | 270 | 1.18 | 0.086 |
| 2-φ25-14 | 25±0.5 | 39±1.2 | 34±0.8 | 14 | 2028 | 42 | 6084 | 300 | 1.54 | 0.096 |
| 2-φ32-11 | 32±0.7 | 46±1.5 | 41±0.8 | 11 | 1594 | 33 | 4782 | 420 | 1.92 | 0.12 |
| 2-φ38-10 | 38±0.7 | 52±1.5 | 47±0.8 | 10 | 1449 | 30 | 4347 | 500 | 2.44 | 0.153 |
| 2-φ51-8 | 51±0.7 | 65±1.5 | 60±0.8 | 8 | 1159 | 24 | 3477 | 630 | 3.38 | 0.212 |
| 2-φ64-4 | 64±0.7 | 77±1.5 | 73±0.8 | 4 | 579 | 12 | 1738 | 790 | ||
| 2-φ76-3 | 76±0.7 | 90±1.5 | 86±0.8 | 3 | 434 | 9 | 1302 | 950 | ||
| 2-φ89-2.5 | 89±0.7 | 105±1.5 | 101±0.8 | 2.5 | 362 | 7.5 | 1086 | 1130 | ||
| 2-φ102-2 | 102±0.7 | 117±1.5 | 113±0.8 | 2 | 290 | 6 | 870 | 1280 | ||
(2) Wire Spiral Hydraulic hose series
| Hose size | Hose I.D | Hose O.D | Layer O.D | Working Pressure | Min Brust Pressure | Min Bend Radius | Unit weight | |||
| Ply*Innerdiameter*Pressure | mm | mm | mm | Mpa | PSI | Mpa | PSI | mm | Kg/m | Ib/ft |
| 4SP-φ6-11.5 | 6±0.5 | 19±1.0 | 14.4±0.5 | 61.5 | 8911 | 246 | 35644 | 130 | ||
| 4SP-φ10-52 | 10±0.5 | 24±1.0 | 19.2±0.8 | 52 | 7535 | 208 | 30139 | 160 | ||
| 4SP-φ13-50 | 13±0.5 | 27±1.0 | 22.2±0.8 | 50 | 7245 | 200 | 28980 | 210 | 1.395 | 0.087 |
| 4SP-φ16-50 | 16±0.5 | 30±1.5 | 26±0.8 | 50 | 7245 | 200 | 28980 | 260 | 1.589 | 0.1 |
| 4SP-φ19-46 | 19±0.5 | 35±1.5 | 30±0.5 | 46 | 6665 | 184 | 26661 | 280 | 2.272 | 0.142 |
| 2SP-φ19-21 | 19±0.5 | 31±1.5 | 27±0.5 | 21 | 3043 | 84 | 12172 | 280 | 1.491 | 0.093 |
| 4SP-φ25-35 | 25±0.5 | 41±1.5 | 36±0.5 | 35 | 5071 | 140 | 20284 | 360 | 2.659 | 0.166 |
| 2SP-φ25-21 | 25±0.5 | 38±1.5 | 33±0.5 | 21 | 3043 | 84 | 12172 | 360 | 1831 | 0.115 |
| 2SP-φ32-20 | 32±0.5 | 49±1.5 | 44±0.5 | 20 | 2898 | 80 | 11592 | 460 | 2.195 | 0.137 |
| 4SP-φ32-32 | 32±0.5 | 52±1.5 | 47±0.5 | 32 | 4636 | 128 | 18547 | 560 | 3.529 | 0.221 |
| 4SP-φ38-25 | 38±1.0 | 56±1.5 | 50.8±0.7 | 25 | 3622 | 100 | 14490 | 560 | 4.118 | 0.258 |
| 4SP-φ51-20 | 51±1.0 | 69±1.5 | 63.8±0.7 | 20 | 2898 | 80 | 11592 | 720 | 5.71 | 0.358 |
| 2SP-φ51-14 | 51±1.0 | 65±1.5 | 60.8±0.7 | 14 | 2028 | 48 | 8114 | 720 | 3.81 | 0.234 |

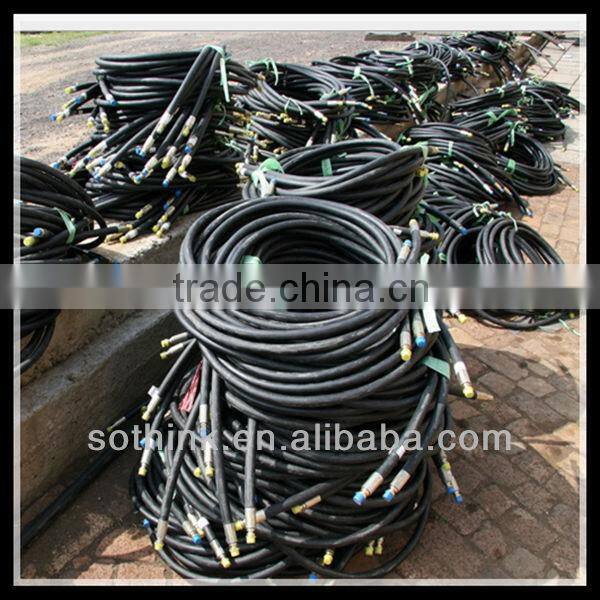

PHOTOS OF High-pressure rubber hose :
high pressure rubber hose
