Sintered Wire Mesh with excellent mechanical properties for purification and filtration

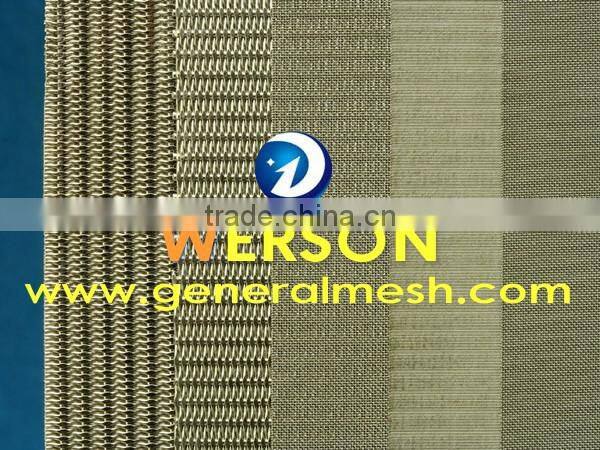

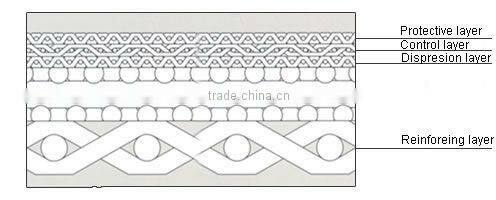

Sintered wire mesh with square wire mesh is made form multiple layers of woven wire mesh panel together using a sintering process. This process combines heat and pressure to permanently bond multi-layers of mesh together. The same physical process used to fuse individual wires together within a layer of wire mesh is also be used to fuse adjacent layers of mesh together. This creates a unique material offering excellent mechanical properties. It is ideal material for purification and filtration. It may be from 5, 6 or 7 layers of wire mesh (5 layers sintered filter mesh structure drawing as below picture).

Characterictics:

1.Wide range of filter rating
It has the steady filter rating from the 1micron to 100micron.

2.Steady filter rating
Due to the two protective layers, the mesh of the filter layer is not easy to deform.

3.High mechanical strength
Owing to the support of fourth and fifth layers, it has higher resistance to pressure and mechanical strength.

4.Easy to wash
It is very easy to wash, especially to reverse wash, by virtue of adopting the surface layer filtration material

5.Heat resistance
It can resist the heat up to the 480°C.

6.Corrosion resistance
It has the property of anti-corrosion as a result of adopting the material of SUS316L.

7.Tractability

It suits for many kinds of machining, such as cutting, bending, punching, stretching, welding and so on.

Material:

The standard materials are SUS304(AISI304),SUS316(AISI316),SUS316L(AISI316L).
Special Alloy Steel Hastelloy ,Monel ,Inconel are acceptable base on customer's requirement .

Sintered wire mesh size:

The standard dimensions are 500x1000mm, 600x1200mm and 1000x1000mm, 1200x1200mm, and other dimensions in between are also available.
