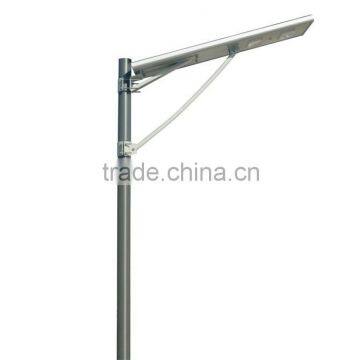

30W All In One Outdoor Waterproof Solar Street Light With Pole

30w all in one solar street light
Model: CSSTY-230(With Sensor)

Mounting height(m): 6-7m
Solar panel Max power: 18V60W (High efficiency monocrystalline silicon)

Space between light(m): 20-25m
Solar panel Life time: 25 years

Lamps material of main: aluminium alloy
Battery Type: lithium battery(Life time 5 years)

Certificate: ISO/CE / ROHS / IP65
LED Max power: 12V 30W

Warranty period: 2years
Led chip brand: Bridgelux from USA with high brightness

Unit size:  1150*330*140mm
Lumen (LM): 3600-3900lm

N.W: 18.5kg
LED Life time: 50000hours

Inner box: 960*380*195mm
Lighting Viewing Angle: 120°

Carton size: 1190*400*220mm
Charge time(by sun): 6-7hours (ith enough strong shine)

Q'ty/ctn: 1 set/carton
Discharge time: more than 20 hours (saving mode)

GW.for carton: 14.5 kg
Working TEMP( ℃ ) -20~+60 20GP

20GP container: 270 sets
CCT (k): 6500k-7000k

40GP container: 550 sets

Q: What should be done at first before install?
R: Firstly, Once you recieved it, pls check the complete pacel, and test light's basic function---lighting, to confirm it can work perfectely.
Secondly, Considering the security, We didn't charge the battery full before shiping the all in one/integrated solar street light to you, so pls charge the light at daytime for 3 days without lighting/discharging at night.
Thirdly, pls remove the plastic wrap on the light source,and then install.

Q: How to install?
R: Fix the product with a right angle, keep the solar panel face the sky, and make sure no shelter on the surface of solar panel.

Q: What to do with the Rainy day or Cloudy day?
R:The all in one/integrated solar street light is Rainyproof---Waterproof grade: IP65.
After fully charged, the battery can keep the LED working in several rainy/ cloudy days.

Q:How to choose the configuration?(take our Integrated solar led street light price for example)
R:At first, to evaluate the use area, understand its climatic conditions and sunlight conditions.
Where is your application? For highway lighting or non-road, non-road is usually parks or residential roads.
whether need some special requirements for brightness and installation ? What is the lighting range ?

Q:How to choose the best suitable solar led street light price ?(Below for your reference):
R: Installation height 7-10M: normally select WG-A30, WG-A40, WG-A50, WG-A60, LED power are 30W, 40W, 50W, 60W.characteristics are high brightness, high power, a wide range of lighting. ideal for school sports, docks, ports and other places or width of 15-25 meters of road.
Installation height 5-7M: normally select WG-A15, WG-A20, WG-A25, LED power are 15W, 20W, 25W.characteristics are brightness, medium power, lighting range is suitable for rural, residential, parks. schools and other sidewalk or road width of 10-15M.
