Home > Products > Shipbuilding Gantry Crane > Launching Gantry Cranes
Launching Gantry Cranes
- Shanghai Shenzhen Qingdao
 - T/T Credit Card

You May Like
Product Details
| Condition | New | Application | Used in shipyard, port, quayside, wharf, dock, warehouse and so on | |
| Rated Loading Capacity | 2*25t+50/10t~2*100t+160/32t | Max. Lifting Load | 2*100t+160/32t | |
| Span | 50m~100m | Place of Origin | Henan, China | |
| Brand Name | Kehao | Model Number | KH210 | |
| Certification | CE/ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Launching Gantry Cranes1.Strong compatibility
2.High lifting capacity
3.Best quality
4.Favorable price
                                                         Launching Gantry Cranes

To Lift The Dream
As a crane equipment trader, to lift the heavy goods is only our obligation, not our purse. Sometimes we
want to own a super robot, because the load is too heavy to bear, sometimes in life, sometimes in career. So
we have to sigh for the dream.
To Lift The Dream, this is our purse. The trade consultant would be the super robot of your life, career,
and your dream.

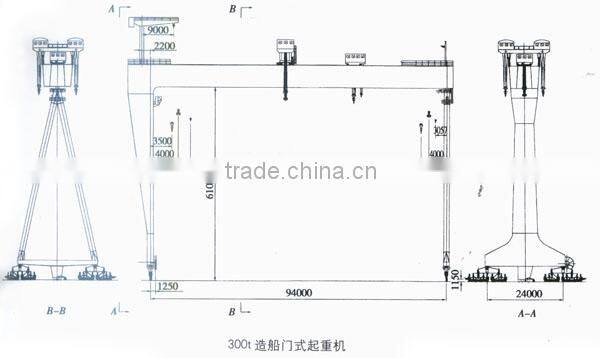

 Gantry Crane Sketch

Technical Specifications
Lifting weight(t)  | t | 2*25t+50/10t  | 2*25t+75/20t  | 2*75t+80/20t  | 2*100t+160/32t  | |||
Joint lift crane  |

  | 100  | 150  | 200  | 300  | |||
Air-energized  | 50  | 100  | 150  | 200  | ||||
Working system  | A5  | |||||||
Span (m)  | 50  | 60  | 80  | 100  | ||||
Lifting height(m)  | H1  | 30/4  | 40/5  | 45/5  | 60/6  | |||
  | H2  | 30/4  | 40/5  | 45/5  | 60/6  | |||
  | H3  | 32  | 42  | 47  | 62  | |||
s p e e d





  |
 lift

  | Crab above  | m/min  | 0.75-7.5  | 0.6-6  | 0.5-5  | 0.5-5  | |
Crab below
  | main  |




  | 0.75-7.5  | 0.6-6  | 0.5-5  | 0.5-5  | ||
aux  | 12  | 15  | 15  | 15  | ||||
 trave   | Crab above  | 0.42-42  | 0.42-42  | 0.5-20  | 0.5-20  | |||
Crab below  | 0.42-42  | 0.42-42  | 0.5-20  | 0.5-20  | ||||
trolley  | 0.5-20;0.5-30  | 0.5-20;0.5-30  | 0.5-20;0.5-30  | 0.5-20;0.5-30  | ||||
Gantry Crane Introduction
Brief introduction  | Double beams ship deck cranes is composed of bridge, support legs,crane traveling organ, trolley, electric equipment, strong lifting winch, the frame adopts box-type welding mechanism, crane traveling mechanisms are operated in thedriver cabin or remote control, Power is supplied by cable or slide wire, there are different capacity double beams gantry crane for your choice according to your different use.  |
Application  | It is one kind of heavy duty gantry crane; it is widely used in plants, factory, workshop, warehouses, and materials stocks to lift goods or materials.  |
Control methods  | 1.Pendent line with press button 2.Cabin control 3.Remote control  |
General features  | 1.Reasonable structure, strong bearing capacity 2.Ideal performance, smooth starting and stopping 3.Low noise, low cost maintenance 4.Safe and reliable operation  |
Technical features  | 1.Strong box type, welding by machine hand, strong and beautiful 2.Wheels, gears, couplings, wire rope drums are manufactured by our CNC machine center, top quality control 3.Heavy duty slipring motor, WUXI NGP motor,top quality and famous brand in China 4.Siemens main electric system  |
Service  | We could provide turn-key project as your demand include Design, Manufacture, Quality assurance, assembling, Testing, commissioning, training and after service.  |
Design and construction rules  | All the standards required the crane is according to china standards  |
Safety Guarantee  | 1. Weight overload protective device 2. Top quality polyurethane buffer 3. Crane traveling limit switch and lifting limit switch 4. Low voltage protection function 5. Emergency stop system 6. Current overload protection function.  |
Gantry Crane For Container

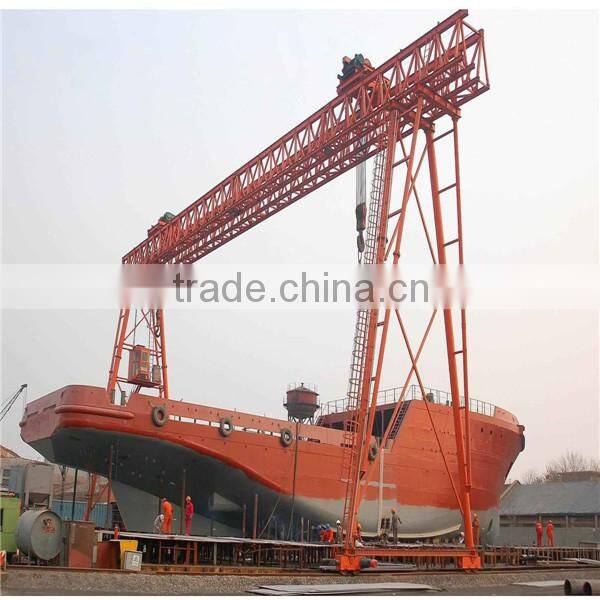

Gantry Crane For Ship

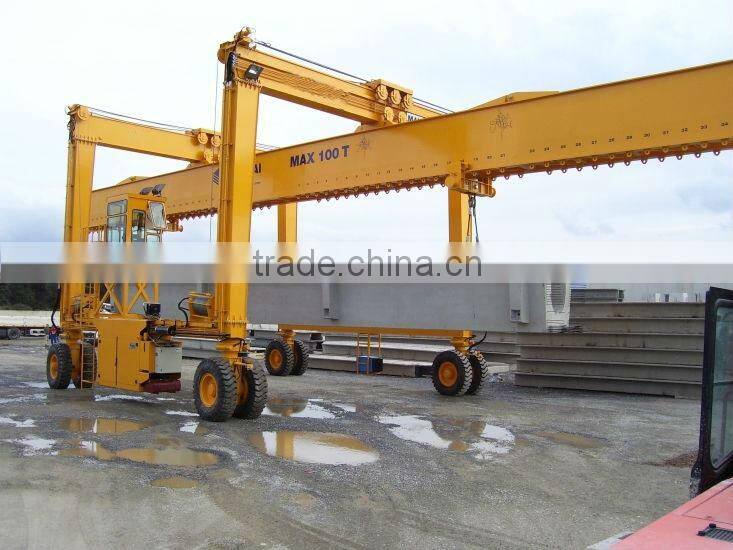

Gantry Crane With Tire

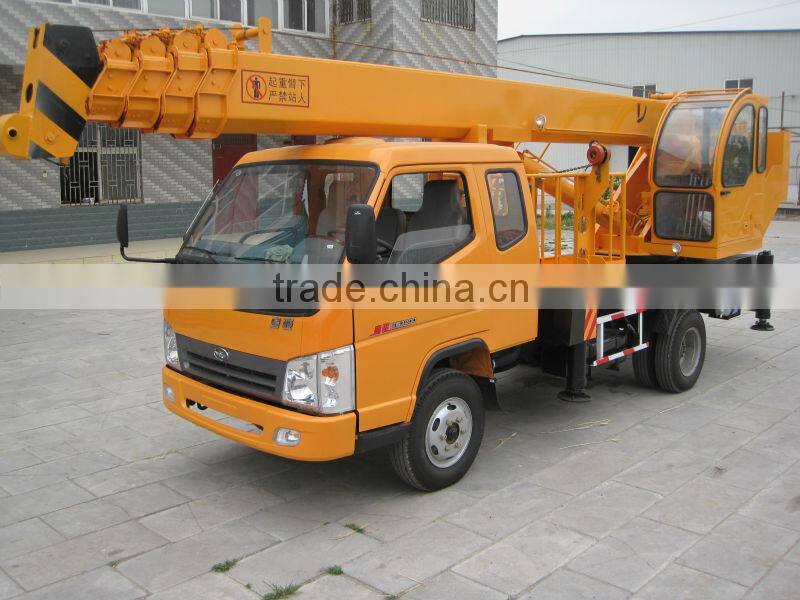

Truck-mounted Crane
If you interested in our products,pls contact us immediately,we will serve you without delay.
