Double Girder Portal Crane

                           Double Girder Portal Crane

key words: Portal crane, Wharf crane, Shipyard crane, Portal jib crane

 1. Capacity:  5.0 tons ~ 250 tons

 2. Size requirements:  needed to be dsigned as customer's requirements

Drawing: (one of our project)

Technical Parameters:

 K-101 Fixed Single-boom Portal Crane

K-102 Mobile Single-boom Portal Crane

K-111 Double-boom Portal Crane

K-112 Mobile Double-boom Portal Crane

Test

Step1: Inspect before test 1) Checking the purchased part cetificate 2) Verificate the specificaiton of portal crane 3) Inspect Installation,Circuit,Instrument Equipment,personnel allocation whether feasible   Step2: safety limit test 1) isolated running 2) Lifting-amplitude of variation 3) Lifting-slew Step3: Load capacity test(7ton) 1) isolated running 2) Lifting-amplitude of variation 3) Lifting-slew   Step4: Overload dynamic test(7.7ton) 1) isolated running 2) Lifting-amplitude of variation 3) Lifting-slew Step5: Overload static test 1) Loading 125%,8.75t lifting below 0.3m,keep in 10 minutes

1. Delivery time: 120 days ~180 days.

2. Packaging: Wood case for electric parts, accessories; Large sections will be loaded onto Bulk Cargo Ship

     after packing.

3. Transportation: Generally 35 days to 50 days to destination port.

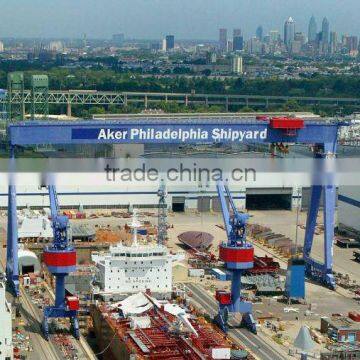

Install on the spot as below picture

As a crane equipment trader, to lift the heavy goods is only our obligation, not our purse.

 Sometimes we want to own a super robot, because the load is too heavy to bear, sometimes in life,

   Sometimes in  we have to sigh for the dream.

.

    To lift the dream, this is our purse

.

    the trade consultant would be the super robot of your life, career, and your dream.

.

                     I am in china, but serve you in the world

.

                                                                            kehao, your trustworth supplier

1.Certificate:What are the certificates and test certificate for crane equipment will be used so many

countries?

Answer: CE, ISO, and CCS, BV, LR, ABS all classfication.

2. Basic Parameters: What should I do if I want to buy a protal crane?

    Answer:  please try to finish the main specification as below:

    1). Max load capacity    ---ton

    2). Max working radius   ---m

    3). Lifting height above rail/below rail   ---m

    4). Rail distance or guage  ---m

    5). Travelling distance       ---m

 Or let the Trade Consultant to help you to finish with you.
