Factory Jib Crane 3ton
- Tianjin/Qingdao/Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Warehouse, factory, workshop | |
| Rated Loading Capacity | 0.25~10 ton | Rated Lifting Moment | 2.5~100KN | |
| Max. Lifting Load | 10 ton | Max. Lifting Height | 7m | |
| Span | 1.8-5.5m | Place of Origin | Henan, China | |
| Brand Name | Kcrane | Model Number | BZ-Jib Crane | |
| Certification | CE ISO GOST SGS | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Factory jib crane 3ton is a kind of small and medium-sized lifting equipment with the recent development.Its unique structure, safe and reliable.With high efficiency, energy conservation, the provincial time, effort, and flexible and so on. And it can operate freely in 3D space,and it can show its superiority more especially when its working in the short-range and intensive lifting occasions.Widely used in workshops, warehouses, docks and other fixed place.
1. Parameters - Factory jib crane 3ton

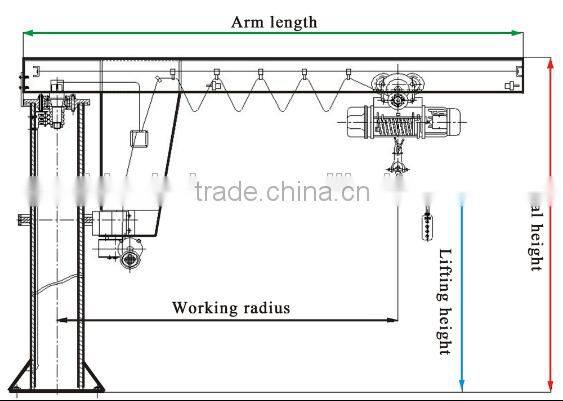

2. Drawing - Factory jib crane 3ton
BZ 0.25 | BZ 0.5 | BZ 1 | BZ 2 | BZ 3 | BZ 5 | BZ 10 | |
Capacity (ton) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 |
Lifting height (m) | 2~7 | 2~7 | 2~7 | 2~7 | 2~7 | 2~7 | 2~7 |
Lifting speed (m/min) | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 |
Turning speed (r/min) | 0.92 | 0.92 | 0.76 | 0.59 | 0.51 | 0.51 | 0.51 |
Working radius (m) | 0.9~5 | 0.9~5 | 0.9~5 | 0.9~5 | 0.9~5 | 0.9~5 |
Our Services |
Pre-Sales Service After-Sales Service * Inquiry and consulting support. * One year warranty. * Drawings support. * Engineers available overseas. * Technical support. * Installation training. * Commissioning. * Using training. * View our Factory. * Maintenance training. |
1. What should I provide when inquiry? |
A: Lift capacity B: Working radius C: Lift height D: Power source E: Control mode F: Other requirements The more detailed, the better! |
2. Are the products customized? |
The cranes are customized according to your using condition and requirements |
3. How to install? |
A: Installation and use manual. B: Do the installation training for you. C: Engineers available to service machinery overseas. |
4. Crane failure |
The accessories are free in the period of warranty if it is the quality problems |
