MG model heavy duty container gantry cranes used

MG model heavy duty container gantry cranes used

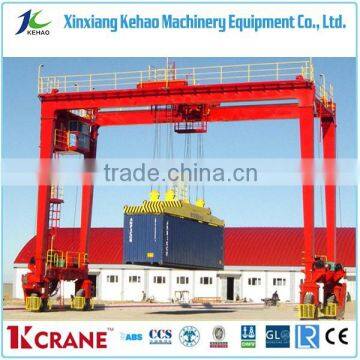

The product pictures of container gantry cranes used

gantry crane

1.Mainly made up of bridge,trolley,crane traveling mechanism and electric system.

2.Applies to the open warehouse or rail along for general handling and lifting work.

3.Also can equipped with many lifting device for special work.

4.Prohibited for lifting high temperature solution, flammable, explosive, corrosion, overloading,dust and other dangerous operations.It is widely used in industrial and mining enterprises,warehouses and other places need lifting weights.

Technical Parameters

Product Component

1.main girder

be welded of steel plants with honeycomb hole,connected by high precision bolt.

there are sliding rail for trolley to travel upper the girder which is fixed on outrigger by high-tension precision bolt.

2.outrigger

a.the ladder is used by operator to enter into cab or arriving at winch

nsist of rigid outrigger and flexible outrigger, all connection points are connected by high-tension bolt

c.when the span≥30m,there need a flexible leg aiming at reducing the lateral thrust the trolley has to the rail when the girder load objects

3.traveling mechanism

a.the driving gear box supply power to  trigger the crane's traveling

b.The differences between driving gear box  and passive wheels is that passive wheel box lacks transmission strcuture such as dynamo,reducer and a pair of exposed gear.

4.trolley with mechanism

a.trolley frame welded of steel plate is the loading and traveling mechanism of trolley with hoist.

ch is the lifting mechanism of trolley,when it works,wire rope affects the pulley as rising and falling movement,which makes suspended objects lifting and lowering.

5.cab

a.glass window through which one can watch overall working condition is installed in the front and two sides of the cab.

b.electric cabinet as a group of independent cabinet,fixed outside of cab is connected by control cable.

.

1.Delivery time: 15 days ~40 days.
2.Package: wood case for electric parts, accessories;large sections will be loaded onto bulk cargo

ship after packing.
3.Transportation: generally 35 days to 50 days to destination port.

4.Export: FOB, CFR and CIF are common trade terms, if you need more help, please contact with

trade consultant.

5.Installation: the installation team can be sent to local site to install for customer.

6.Operation:The bridge crane has two operating methods,ground or operational room which has open model and chosed and can be instslled on left or right side according to the practical situation.

The direction of entering the gate has two forms,sideway and ends in order to satisfy the users,

choice under different conditions.

1.14 months warranty when products leave the factory, or 12 months warranty after installation and

commissioning in addition to the human damage factors.
2.2 years spare-parts provided for better maintenance.
3.Professional technical staffs provide installation, commissioning and training services.

4.Delivery with English user manual, parts manual, product certification and other relevant certificates.
5.Technical advisory for any time.   .

.

1.To lift the dream

   As a crane equipment trader, to lift the heavy goods is only our obligation, not our purse.

   Sometimes we want to own a super robot, because the load is too heavy to bear, sometimes in life,

   Sometimes in  we have to sigh for the dream.

2.To lift the dream, this is our purse.

   The trade consultant would be the super robot of your life, career, and your dream.

3. I am in china, but serve you in the world.

   Kehao, your trade consultant

2. Our main markets

.

    yes.we can provide the customized gantry crane depending on your detail requirement.

    our main gantry crane: (enclosed some pictures in the product for your reference)

    KHG-3--
    KHG-311  Half gantry crane
    KHG-321  Single girder gantry crane
    KHG-331  Double girder gantry crane
    KHG-341 Trussed gantry crane
    KHG-351 Container gantry crane

    KHG-361 Shipbuilding gantry crane

2. Do your side can provide other lift tools?
    yes, we can provide some lift tools like grab, hoist and electric magnetic chuck as you want.
3. The space of my workshop is limited, can the crane ok for mine?
     yes, please let us know your requirement and we engineer can design for you.
4.Whats the information should i provide when inquiry?
    a.lifting height.(hook center to ground)
    b.span.with cantilever or not?
    c.have you installed the rails?do you need us supply the rails?
    ing condition:which material to lift?temperature?
    e.would be better if you have drawings of your plant.

5.How to get in touch with your professional consultant?

    a.you can send email to us on a web page you interested products.

    b.you can call us or add our skype, MSN,communicate on line......
