Home > Products > Cutting machine series > XZCQ-600 3D NUMERICAL CONTROL CUTTING MACHINE(MONOLITHIC)

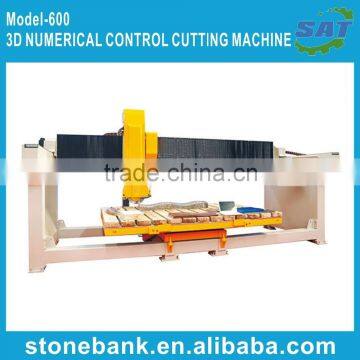

XZCQ-600 3D NUMERICAL CONTROL CUTTING MACHINE(MONOLITHIC)
- 50 Set / Sets per Month
- SHENZHEN
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Bridge Saw | |
| Use | Granite | Production Capacity | 100% | |
| Place of Origin | Guangdong, China | Brand Name | SAT | |
| Model Number | 600 | Voltage | 380V | |
| Power(W) | 50hz | Dimension(L*W*H) | 5800x2800x2800mm | |
| Weight | 5000KG | Warranty | 12months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
This machine is controled by system of 3d hererotype stone cutting.through the man-machine interface,enter the code of figure,which is easy to know the processing efficiency and schedule.except the normal bridge-cutting function ,it contains the funciton of cutting 2d beeline plane and 3d curve and arcside.
this machine is monolithic,with machine,electronic control and oil-pressure.it's easy to transport and fixing,which is featured by good rigidity.it's drived by high-quality rail to insure the processing definition.
Machine dimension | 5800x2800x2800mm | Water put | 25L/min |
Working table outlook dia | 3200x1850mm | Weight | 5000kg |
Machine setting area | 50m² | Blade size | Ø350-Ø500mm |
Power full | 380V 50HZ | Max production dia | 3200×1850mm |
Total power | 19.4kw | Cutting thickness | 300mm |
Main motor power | 11kw | Pressure system power | 1.5kw |
left/right power | 2.3kw | working pressure | 5-7Mpa |
front/back power | 2.3kw | Hydraulic pressure oil | 46# |
Rise/down power | 2.3kw | Machine lubricating oil | CD40 |
