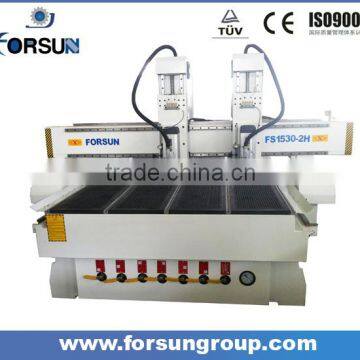

Hot!!! two heads MDF/PVC engraving cnc routers plywood milling cnc router machine FS1530A-2H
- 100 Set / Sets per Month
- Qingdao China
- T/T Credit Card
You May Like
-
Hot!!!Double heads plastic /PVC cutting cnc machine /Best wood cutter machine with two heads FS1530A-2H
-
8 spindles wood cutting cnc router /wood engraving cnc router with 8 heads
-
Multi-spindles wood cutting cnc router /8 heads sofa/table /bed making cnc router machine
-
8 heads cnc router engraving wood machine /cnc wood lathe/cnc wood cutting
-
Woodworking cnc router wood cutter /planel milling machine with two heads FS1530A-2H
-
8 heads cnc wood working cnc router /best sales table/bed /sofa making cnc router with multi-heads
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | China | Brand Name | Forsun | |
| Model Number | FS1530A-2H | Voltage | 380V | |
| Power(W) | 3.5KW | Dimension(L*W*H) | 3570*1920*1850mm | |
| Weight | 1180 KG | Certification | CE certified | |
| Warranty | 1.5years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Hot!!! two heads MDF/PVC engraving cnc routers plywood milling cnc router machine FS1530A-2H
1. Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture.
2. Decoration industries: screens, wave boards, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC,
artificial stonesplastics and soft metal sheets suv.
double-head cnc routers Technical Parameters:
NO. | Items | Parameters | Option | |||
1 | Working Area | XYZ | 1500*3000*200mm | <=2000mm | ||
3 | Table Type | T-Slot Vacuum table |
| |||
4 | Accuracy | Working Accuracy | ±0.03/300mm | |||
Repositioning Accuracy | ±0.02/200mm | |||||
6 | Drive system | X,Y with Rack and Pinion Z with lead screw | ||||
7 | Speed | MAX Traveling Speed | 32000mm/min | |||
MAX Working Speed | 15000mm/min | |||||
8 | Spindle | Spindle Power | 3.5 KW Air cooling spindle | Italian HSD Spindle | ||
Spindle Speed | 0-18000r/min
Stepper |
Servo | ||||
10 | Drive and Motor | |||||
12 | Working Voltage | AC380V/50Hz | AC380V/60Hz | |||
14 | Operating System | DSP | NC studio | |||
15 | Net Weight/Gross Weight | 1060 KG/1180 KG | ||||
16 | Packing size |
3570*1920*1850mm
| ||||
All parameters above subject to change without prior notice | ||||||
water cooling cnc routers Standard features:
1)Working area: 1300mm*2500mm*200mm(X,Y,Z axis)
2) Solid steel frame construction thicken to 12mm , strong stability
3) 3.0 kw air cooling spindle,long life and good cooling effect
4) Stepping drives , Strong anti-interference ability large power and high accuracy
5) T-Slot Vacuum table, can adsorb different size materials and has strong suction
6) HIVIN Linear Guide for maximum stiffness
7) DSP controller,simple operation,good independence
8) Drive System X and Y axis: Rack and Pinion, Z axis: Lead Screw.
9) Automatic Tool Calibration,better control of the distance between the knife
and the material,improve the work efficiency
10) ArtCam software
11) Delta Inverter
12) 3PH 380V 50HZ
13) Plywood case package
Option:
1. Dust Collector system
2. AC Servo motors
3. HSD Spindle
4. Rotary Axis
Other machines parts pictures:
Working Sample:
1) The main target of cutting:Foam,Styrofoam,EVA,EDE,EPS and so on.
Blade can not be replaced.
2)Full computer control ,mechanical transmission,high precision.
3)2D auto CAD drawing,easy to control.
Certified:
What kind machine do you offer ?
We offer CNC Router,Laser cutting machine,plasma CNC Router,Marble CNC Router
What materials can YOUR machines route and cut?
Our routers work with a full range of materials including all non-ferrous metals such as brass
and aluminum, any type of wood, granite or corian, virtually all types of acrylic and plastics,
plus glass and sign foam.
What kind of software does YOUR machine need?
The router is an open based system and can handle any HPGL or G-code software.
What other software ,other than what's included with the machine,Do I need?
Delivery:
Within 12 days after the deposit
Packing:
Wooden case or as your requirment
Payment:
T/T,50% deposit and the balance 50% should be paid before shipment
Our main product:
CNC routers, CNC Engravers, laser engravers, plasma cutting machines, and knife cutting machines in China
Advantage of our company
1.Experience and professional
2.Talented and passionate work team
3.high tech products
4.perfect after-sale service
5.warranty:1.5 years
To provide you detailed quotation, we need to confirm the following detailes :
1.what is raw material
2.the size of material
3.Your other requirement
Detailed information will be sent to you the moment we get your confirmation
