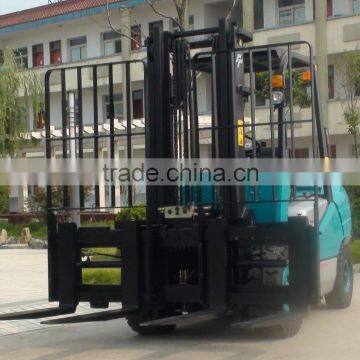

Double-wide sideshifter forklift attachment
- 500 Set / Sets per Month
- Shanghai Ningbo or others
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | Handbarow | |
| Model Number | SCY35TA |
Product Description
Double-wide sideshifters are widely used in filling, brewing, warehousing and other fields which need double-pallet handling and stacking, by making the forklift move two pallets of cargos respectively and them close and separate, greatly improves the handling efficiency.
Technical Date:
Capacity@ Load Center (kg@mm) | Catalog Order No. | Truck/Sideshifter Mounting Class | Out-to-Out Range (mm) | Max. Pallet Spread (mm) | Carriage Width (mm) | Vertical Center of Gravity VCG (mm) | Weight (kg) | Effective Thickness ET (mm) | Horizontal Center of Gravity HCG (mm) |
2500@600 | SCY25TA | II/ II | 1730-2410 | 685 | 1830 | 213 | 296 | 118 | 52 |
2500@600 | SCY25TB | II/ II | 1805-2490 | 685 | 1930 | 218 | 308 | 118 | 52 |
3000@600 | SCY35TA | III/ II | 1730-2410 | 685 | 1830 | 230 | 328 | 126 | 58 |
3000@600 | SCY35TB | III/ II | 1805-2490 | 685 | 1930 | 240 | 339 | 126 | 58 |
Remarks:
1. Please get the actual comprehensive carrying capacity of forklifts and their attachments from the factory;
2. Matching this attachment requires 2 more oil circuits for the forklift;
3. Bracket and forks for optional, please tell us the detailed requirements when place the order;
4. Customized solution is available.
