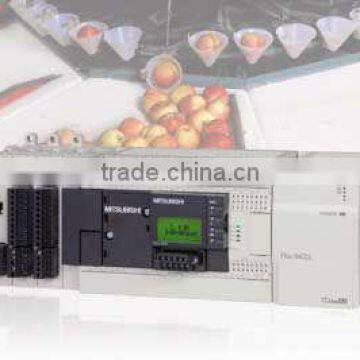

Mitsubishi Industry Automation Product FX3G-60MR/ES-A Automation Product

FOB Price

US$ 100 - 399 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Japan		Brand Name	Mitsubishi
Model Number	FX3G-60MR/ES-A

Mitsubishi industry automation product FX3G-60MR/ES-A !

1. Parameters:

Specifications			FX3G-14M_	FX3G-24M_	FX3G-40M_	FX3G-60M_
I/O points			256 total (combined local and CC-Link remote I/O)
Address range			Max. 128 direct addressing and max. 128 remote I/O
Power supply			100–240 V AC (+10 % / -15 %), 50/60 Hz
Program memory			32,000 steps EEPROM (internal), exchangeable EEPROM memory cassette with loader function
Instruction Time			0.21 µs or 0.42 µs / contact instruction
Integrated inputs	Number of inputs		8	14	24	36
	Input signal voltage		24 V DC (±10 %)
	Input form		sink/source
	Response time		Approx. 10 ms
	Isolation		Photocoupler isolation
Integrated outputs	Number of outputs		6	10	16	24
	Switching voltage		<240 V AC, <30 V DC (relay output), 5 – 30 V DC (transistor output)
	Output type/form		Relay or transistor
	Max. load	resistive	2A/point, max. 8 A total (relay), 0.5 A/point; max. 0.8 A for 4 output points/common terminal (transistor)
		inductive	80 VA (relay), 12 W/point (at 24 V DC); max. 19.2 W for 4 output points/common terminal (transistor)
	Response time		10 ms (relay), < 5 µs (for Y000 and Y001) / 0.2 ms (for all other outputs) (transistor)*
	Isolation		Photocoupler isolation
High-speed counters			21 total, with 16 1-phase (C235 - C250) and 5 2-phase (C251 - C255)
High-speed output counting range			-2,147,483,648 to 2,147,483,647
24V DC service power supply			400 mA
Environment			0 – 55 °C ambient temperature; 5 – 95 % relative humidity
* The 40 and 60 I/O point transistor output base units have a 5µs response time for Y002

2.Our Business lines:

Mitsubishi

1. PLC :Q-PLC, FX1N, FX2N, FX1S, FX3G and FX3U series ;

2.Servo Driver and Motor MR-J2S, MRJ3, MR-J4,MR-JE;

3.Inverter FR-A740, FR-F740, FR-E740, FRD740 series;

4.HMI GT10, GT12, GT15, GT16 series.

Delta:

1.DVP-EH3, DVP-EH2,DVP-ES2/EX2,DVP-ES,DVP-SS2/SX2,DVP-EC2,DVP-EC3 series PLC;

2.AB,A2B2 series servo driver & servo motor

3.C2000,CP2000,CH2000,C200 series inverter

4. DOP B series HMI etc .

3. Company service:

Quality: 100% Original new with very low special price

Warranty :1year warranty service and 15exchange if product itself problem!

Promise: False one lost ten!!

Delivery: large in stock and can be very fast delivery

Any help, please feel free to contact us via Skype: zqzj08
