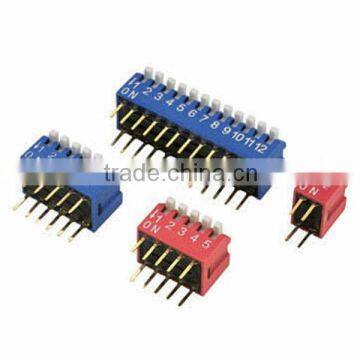

KT11-DP SERIES switch
- 10000 Piece / Pieces per Month
- NINGBO SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM | |
| Model Number | KT11-DP SERIES |
Product Description
KT11-DP SERIES
.MECHANICAL
1Operation Force :2.5N Max
2Stroke : 2.00mm
3Operation Temp : -2070
4Storage Temp : -40 to 85
.ELECTRICAL
1Electrical Life : 2000 operations cycles per switch 24 VDC, 25mA
2Non-Switching Rating : 100mA, 50VDC
3Switching rating : 25mA, 24VDC
4Contact resistance : (a) 50 mΩ max. at initial; (b)100mΩmax. after life test
5Insulation Resistance : 100MΩ, 500VDC
6Dielectric Strength : 500VAC1 minute
7Capacitance : 5pF max
8Circuit : Single pole single throw
.SOLDERING AND CLEANING PROCESSES
1Keep all switch contacts in their OFF position for all operations
2WAVW SOLDERING : Recommended Solder Temperature at 500°F (260) max. 5 seconds
3HAND SOLDERING : Use a soldering iron of 30 watts, controlled at 608°F (320)approximately 2 seconds while applying solder
4CLEANING PROCESS : Flux clean using force rinse, high agitation or triple bath cleaning method. Freon TF or TE give excellent results. When vapor methods are used do not subject the switch to solvents at temperature above 125°F (51)
.MATERIALS
1BASEENGINEERING PLASTICS,Black
2COVERENGINEERING PLASTICS,Red or Blue
3BUTTONENGINEERING PLASTICS,White
4TERMINALAlloy Copper, Gold plating
.PACKING
All DIP Switches are shipped in standard IC tubes with all poles in the OFF position.
