China Drywall Metal Stud and Track Roll Forming Machine
- Ningbo/Shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Other, dry wall forming machine | |
| Tile Type | Steel | Use | Other, channel | |
| Production Capacity | 10m/min(including cutting time) | Place of Origin | Zhejiang, China | |
| Brand Name | Zhongyuan | Model Number | ZYYX | |
| Power(W) | 6.6KW | Voltage | 380V/50HZ/3Phase or as per buy's requirement | |
| Dimension(L*W*H) | about 6m x 1.5m x 1.4m | Weight | 4tons | |
| Certification | CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

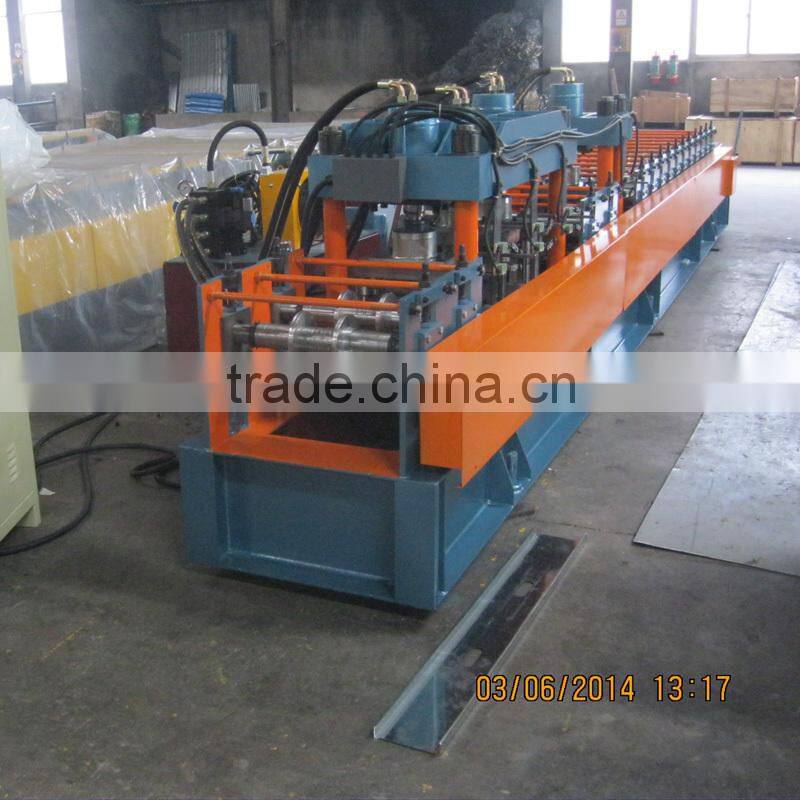

China Drywall Metal Stud and Track Roll Forming Machine
Why choose this machine?
1.Certificate: ISO 9001, CE,
2. Lifetime services

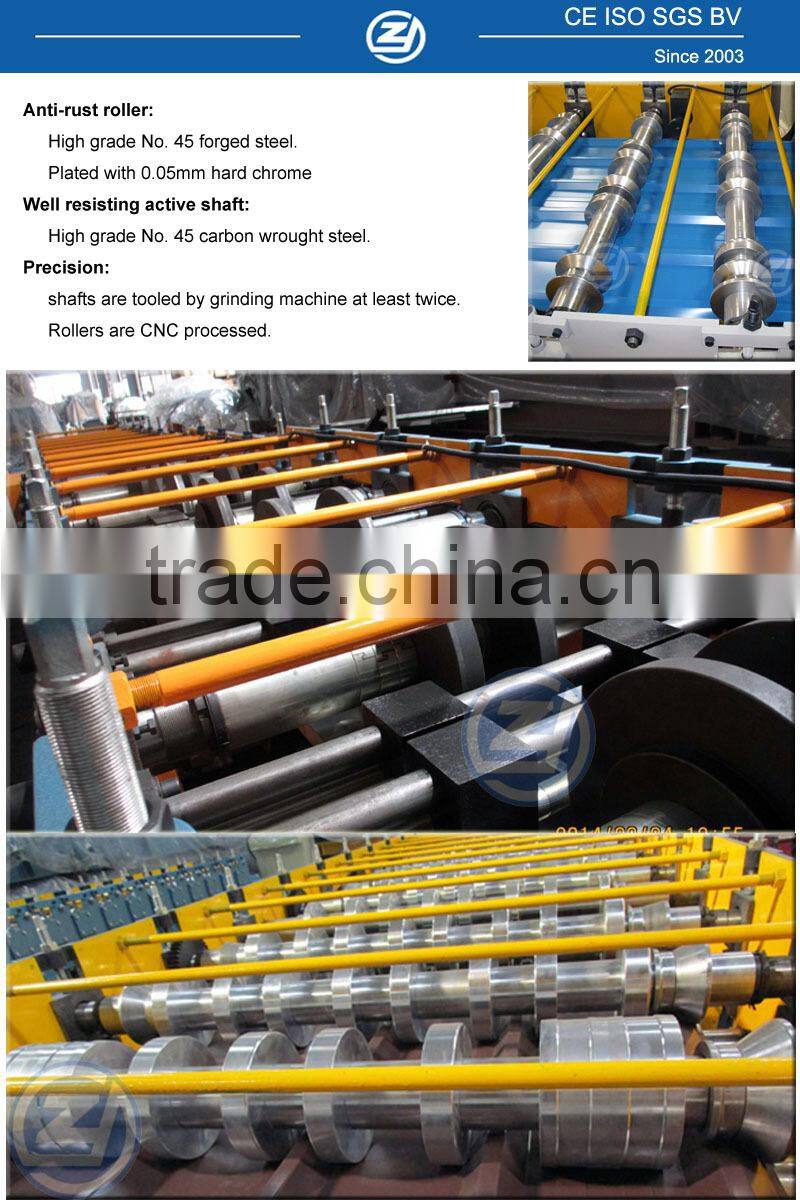

3. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)

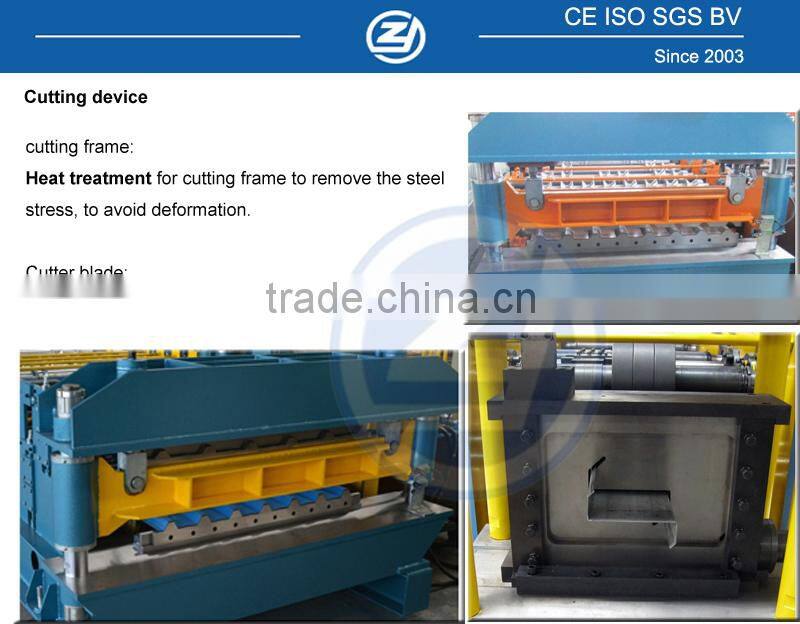

6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
1. Parameters
Item | Specification | |
Material | Type | Pre-painted steel coil & galvanized coils |
Thickness(mm) | 0.3-0.7 | |
Yield strength(mpa) | 235-345 | |
Roller material | 45#Chrome steel | |
Forming speed(m/min) | About 20 | |
Output speed(m/min) | 10 | |
Speed adjusting mode | AC Frequency | |
Roller drive | Decelerating motor + Chain drive | |
Cutting mode | Hydraulic cutting | |
Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control mode | Mitsubishi PLC | |
Operating mode | Button + Mitsubishi Touch screen | |
Main motor power(kw) | 4KW | |
Hydraulic station motor power(kw) | 2.2 KW | |
2. Components of machine:
Decoiler | 1set (3MT capacity) |
Feeding & guiding device | 1set |
Main roll forming machine | 1set |
Hydraulic cutting system | 1set |
Controlling system | 1set |
Run out table | 1set |
3.Process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table
We are professional in making roll forming machines since 2003.
1. Company occupies 6650, in which 5650 for workshops.
2. Capacity: 12-15 sets/month.
3. We are "All-in-house source" --from raw material to the final high-precision forming machine.
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers.
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
| |||
