Home > Products > Stud & Track Roll Forming Machine > Metal Dry Wall Roll Forming Machine
Metal Dry Wall Roll Forming Machine
- Shanghai /Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Zhongyuan | |
| Model Number | zyyx | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Metal Dry Wall Roll Forming Machine
Why choose this metal dry wall roll forming machine?
1. Designed by 15 years experienced R&D members with lifetime services.
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.
7. 55mm diameter solid steel shaft
1.Technical parameter:
Metal Dry Wall Roll Forming Machine | ||
Item | Specification | |
Material | Type | Pre-painted steel coil & galvanized coils |
Thickness(mm) | 0.3-0.7 | |
Yield strength(mpa) | 235-345 | |
Roller material | 45#Chrome steel | |
Forming speed(m/min) | About 20 | |
Output speed(m/min) | 10 | |
Speed adjusting mode | AC Frequency | |
Roller drive | Decelerating motor + Chain drive | |
Cutting mode | Hydraulic cutting | |
Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control mode | Mitsubishi PLC | |
Operating mode | Button + Mitsubishi Touch screen | |
Main motor power(kw) | 4KW | |
Hydraulic station motor power(kw) | 2.2 KW | |
2. Components of machine:
Decoiler | 1set (3MT capacity) |
Feeding & guiding device | 1set |
Main roll forming machine | 1set |
Hydraulic cutting system | 1set |
Controlling system | 1set |
Run out table | 1set |
3.Process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

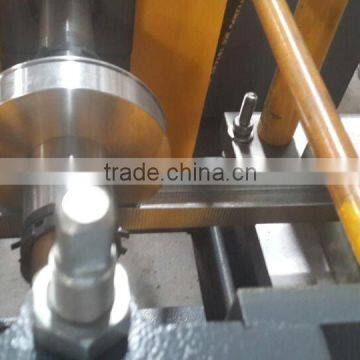

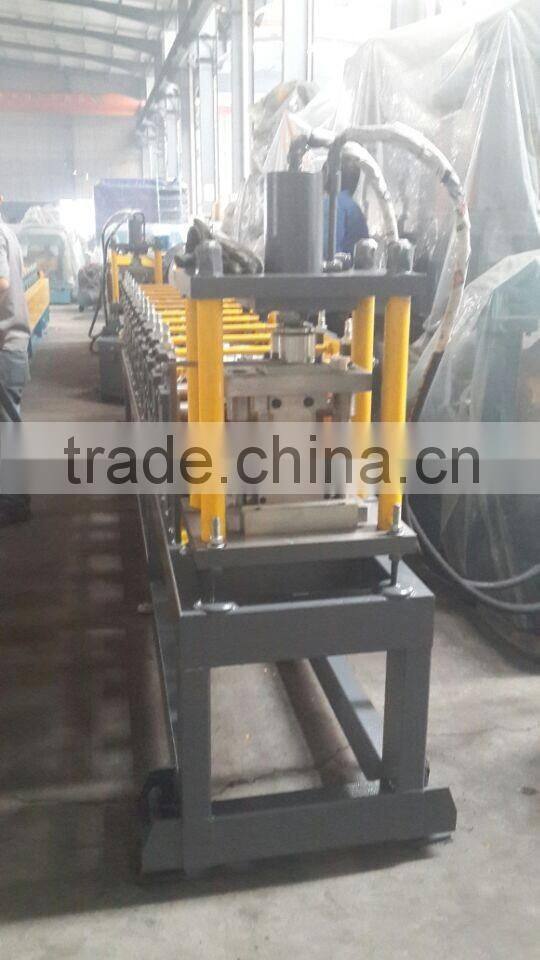

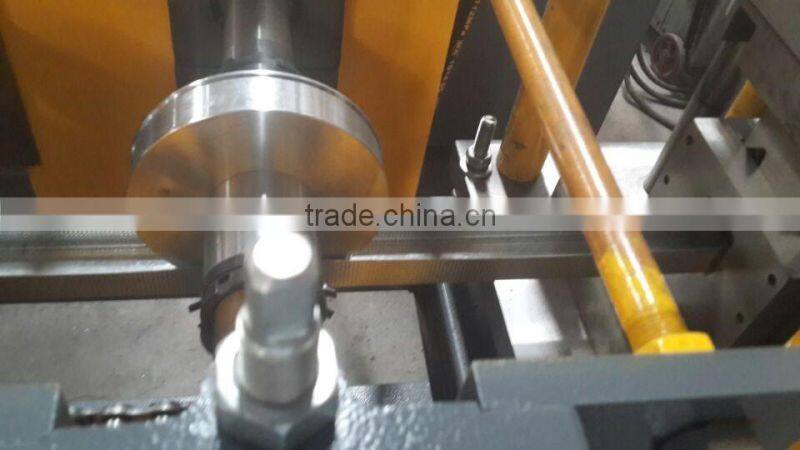

Metal Dry Wall Roll Forming Machine
Metal Dry Wall Roll Forming Machine
Customize Metal Dry Wall Roll Forming Machine
Why us?
1. Customize roll forming machines since 2003.
2. Capacity: 12-15 sets/month
3. Delivery: in only 5-8 weeks for urgent order
4. Company occupies 6650, in which 5650 for workshops
5. Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
Please feel free to contact us for more machine information!
Contact Us
- Hangzhou Zhongyuan Machinery Factory
- Contact nameMay Fu Chat Now
- Phone86-571-82172966
- AddressNanyang Industrial Area,xiaoshan,Hangzhou,China, Hangzhou, Zhejiang
