Home > Products > Shutter Door Machine > Roll-up Door Roll Forming Machine
Roll-up Door Roll Forming Machine
- Shanghai China
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Zhongyuan | |
| Model Number | rolling door series | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Roll-up Door Roll Forming Machine
Why choose this roll-up door roll forming machine?
1. Designed by 15 years experienced R&D members with lifetime services.
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.
7. 72mm diameter solid steel shaft
1.Technical parameter:
Item | Specification | |
Material | Type | Pre-painted steel coil & galvanized coils |
Thickness | 0.4-0.7mm | |
Yield strength | 235-345Mpa | |
Roller material | No.45 forged steel, be plated with hard chrome 0.05mm thickness | |
Forming speed | About 10-15m/min | |
Output speed | 8-12m/min | |
Speed adjusting mode | AC Frequency | |
Roller drive | Decelerating motor + Chain drive | |
Cutting mode | Hydraulic cutting | |
Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control mode | Mitsubishi PLC | |
Operating mode | Button + Mitsubishi Touch screen | |
Main motor power | 7.5KW | |
Hydraulic station motor power | 2.2 KW | |
2. Components of machine:
Decoiler | 1set |
Feeding & guiding device | 1set |
Main roll forming machine | 1set |
Hydraulic cutting system | 1set |
Controlling system | 1set |
Run out table | 1set |

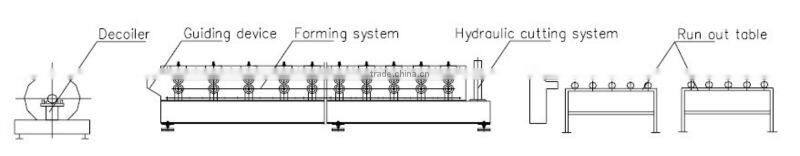

3.Process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

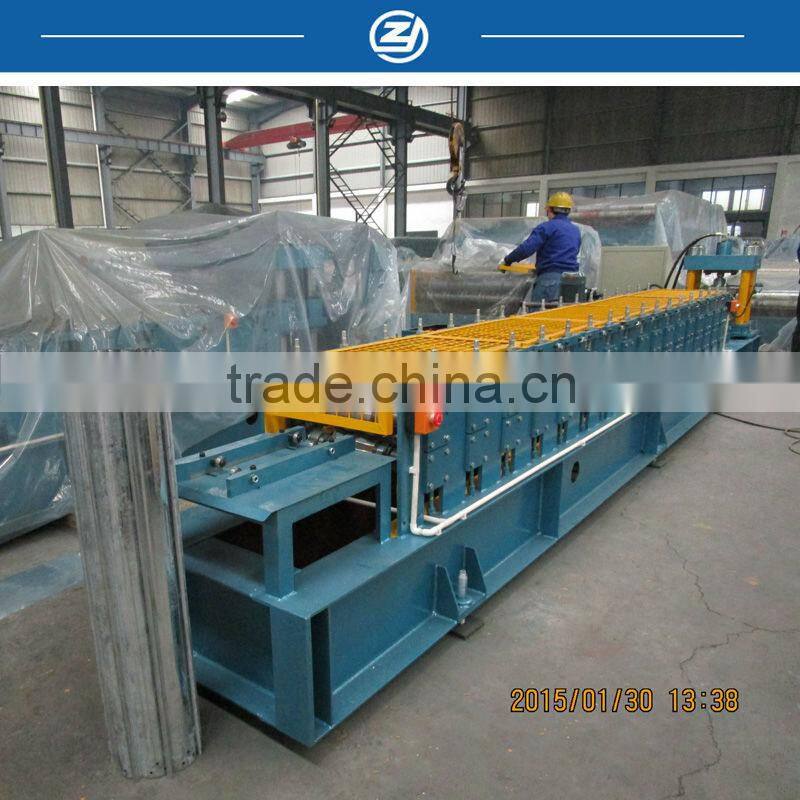

Roll-up Door Roll Forming Machine

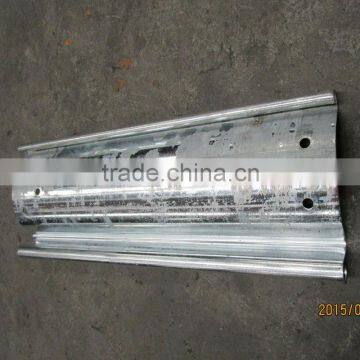

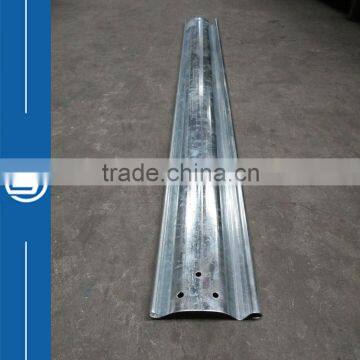

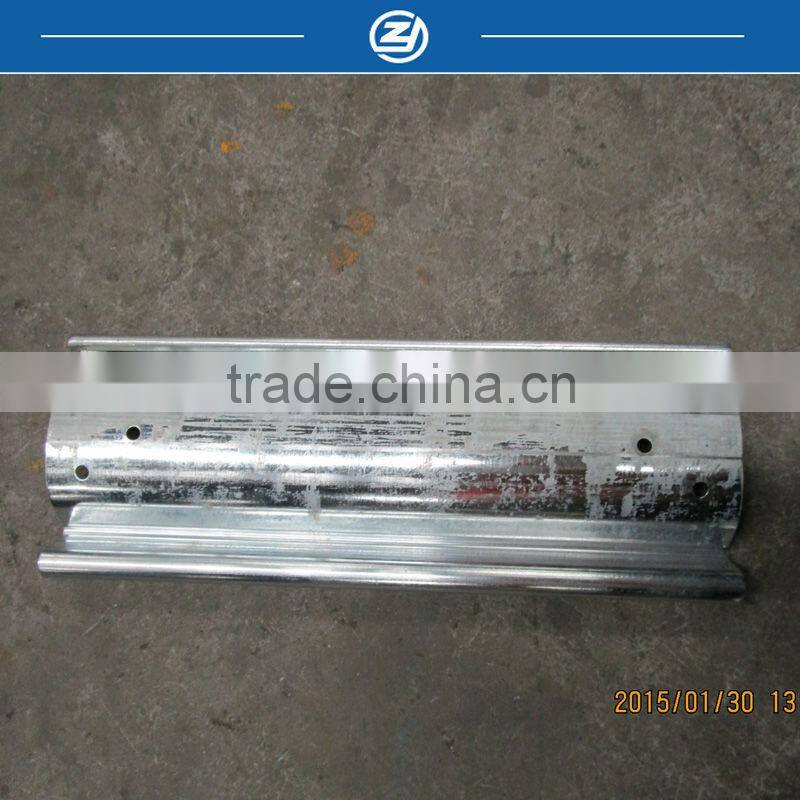

Final Product

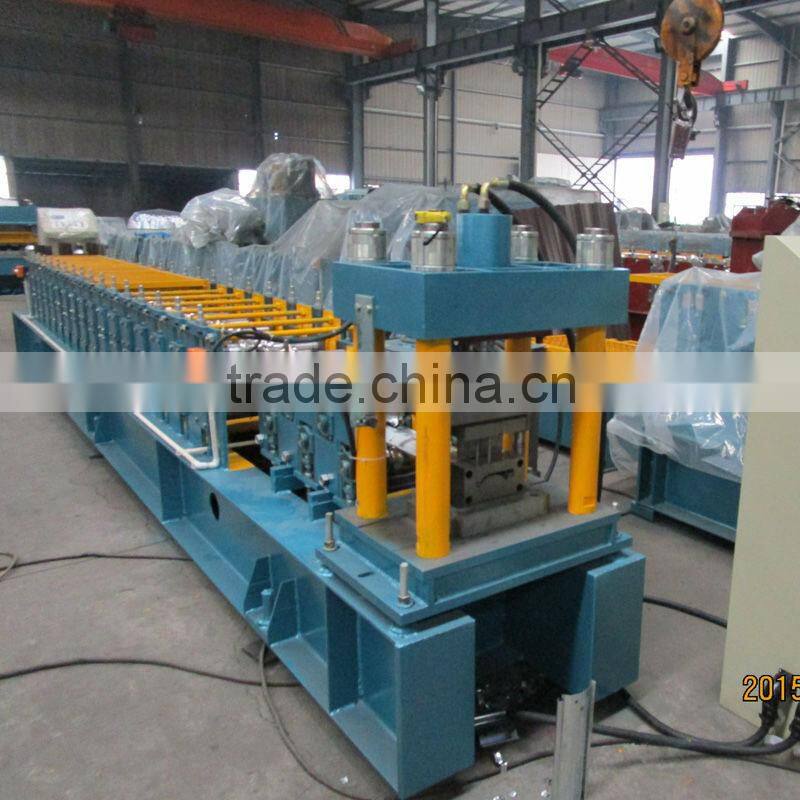

Roll-up Door Roll Forming Machine

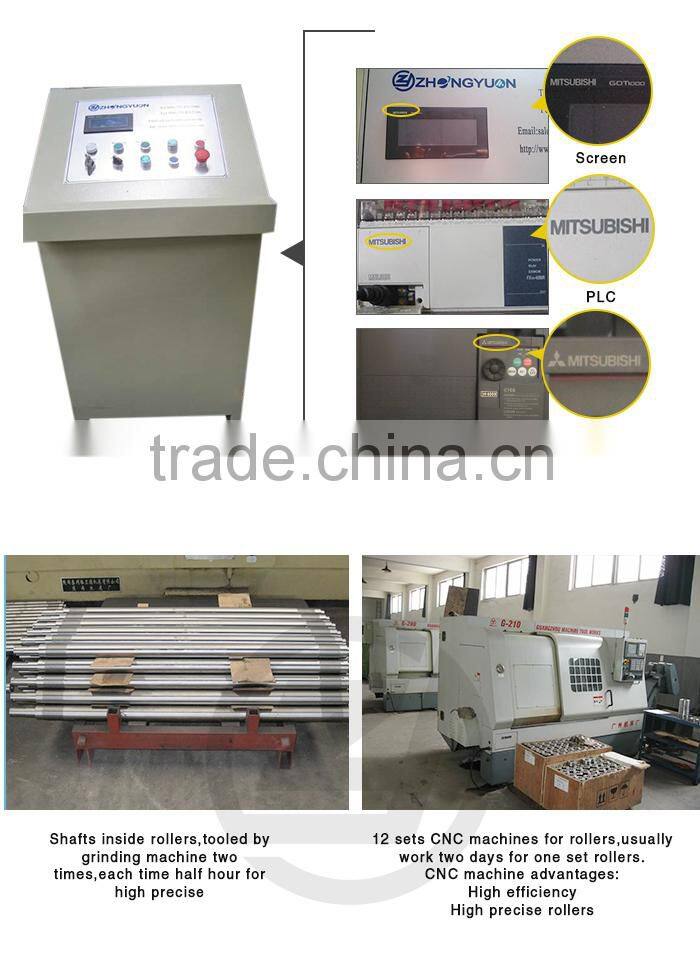

PLC Controller for machine control system

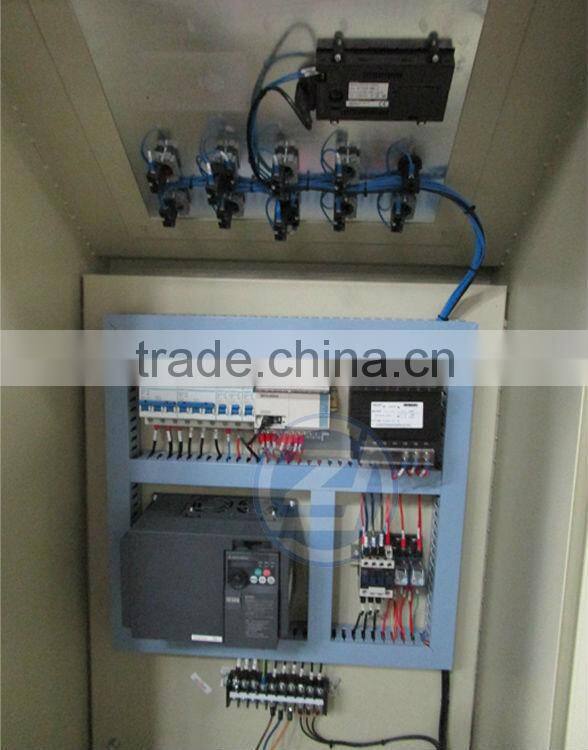

PLC inside reference
Why us?
1. Customize roll forming machines since 2003.
2. Capacity: 12-15 sets/month
3. Delivery: in only 5-8 weeks for urgent order
4. Company occupies 6650, in which 5650 for workshops
5. Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
Related products
Please feel free to contact us for more information!
