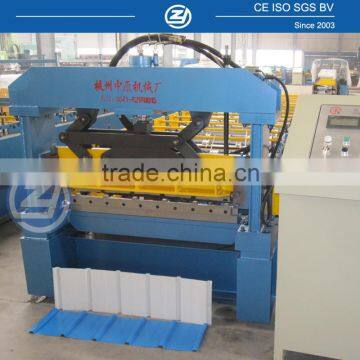

Mainland Glazed Corrugated Roofing Roll Forming Machine Manufacturer

FOB Price

US$ 22,000 - 55,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Roofing roll forming machine
Tile Type	Steel	Use	Other, Roll roofing sheet
Production Capacity	20m / min.	Place of Origin	Zhejiang, China
Brand Name	Zhongyuan	Model Number	ZYYX series
Power(W)	7.5KW	Voltage	380V
Dimension(LWH)	10500X1800x1400MM	Weight	8500KGs
Certification	BV/CE/ISO, CE/BV/ISO	Warranty	12 months limited warranty starting from date of delivery, 12 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

1.Technical parameter:

Item		Specification
Material	Type	Pre-painted steel coil & galvanized coils
	Thickness	0.3-0.7mm
	Yield strength	235-345Mpa
Roller material		45#Chrome steel
Forming speed		About 20m/min
Output speed		20m/min
Speed adjusting mode		AC Frequency
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mould steel
Length measurement		Encoder
Control mode		Mitsubishi PLC
Operating mode		Button + Mitsubishi Touch screen
Main motor power(kw)		7.5KW
Hydraulic station motor power(kw)		2.2 KW

2. Components of machine:

3.Process flow:

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table
