C Shape U Steel Beam Roller With Punching Forming Machine
- 10 Set / Sets per Month
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Condition | New | Work Pressure | 8-12Mpa | |
| Production Capacity | 8m/min | Place of Origin | Zhejiang, China | |
| Brand Name | zhongyuan | Model Number | zyyx steel beam | |
| Voltage | 380V/3Phase/50HZ | Power(W) | 15KW | |
| Dimension(L*W*H) | 6.6m x 1.2m x 1.5m | Weight | 5500kgs | |
| Certification | BV & SGS | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

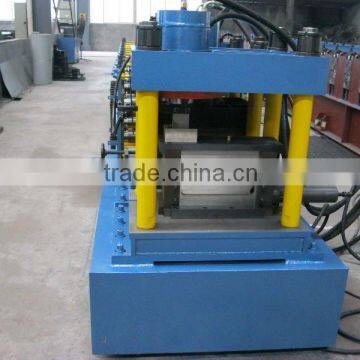

C Shape U Steel Beam Roller With Punching Forming Machine
Machine was designed by 15 years experienced R&D members with lifetime services
1. Overview of machine
Cr12 mould steel cutter with quenched treatment.
Improved structure, more stable cutting performance.
2. Main technical Parameters of C Shape U Steel Beam Roller With Punching Forming Machine
Item | Specification | |
Material | Type | Galvanized coils |
Thickness | 1.5-3.0mm | |
Yield strength | 235Mpa | |
Roller material | Cr12 mould steel | |
Forming speed | 10-13m/min | |
Output speed | About 8m/min | |
Speed adjusting mode | AC Frequency | |
Roller drive | Decelerating motor + Chain drive | |
Cutting mode | Hydraulic cutting | |
Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control mode | Mitsubishi PLC | |
Operating mode | Button + Mitsubishi Touch screen | |
Main motor power | 15KW | |
Total power | 20.5KW | |
2.1 Machine spec.
1. Size: about 6.6*1.2*1.5m (L*W*H)
2. Weight: About 5.5 ton
3. Color: Make-to-order
4. Forming Speed: 10-13m/min.
5. Power : 380V/3Phase/ 50Hz
6. Hydraulic motor power: 5.5 Kw(Depend on final design)
3. Process flow:
Decoiler -- Feeding & Guiding – Leveling--Punching--Roll forming---Hydraulic Cutting – product to run out table
4. Components of C Shape U Steel Beam Roller With Punching Forming Machine
5. Rollers and shafts of C Shape U Steel Beam Roller With Punching Forming Machine
Rollers material: Cr12 mould steel
Shafts for rollers: Grand twice, 82mm diameter solid steel
C Shape U Steel Beam Roller With Punching Forming Machine
Packing reference
PLC Controller for C Shape U Steel Beam Roller With Punching Forming Machine
Operation mode: button + Touch screen
Inside of PLC Controller for reference
Why us?
1. Customize roll forming machines since 2003.
2. Capacity: 12-15 sets/month
3. Delivery: in only 5-8 weeks for urgent order
4. Company occupies 6650, in which 5650 for workshops
5. Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Please feel free to contact us for more information!
