Product Details
| Place of Origin | Zhejiang, China | Brand Name | Feihu/OEM | |
| Model Number | FH-1956 | Material | PVC | |
| Specification | 12mm~300mm, 12mm~300mm | Length | 15m/roll or as request | |
| Thickness | 0.4MM~4MM, 0.4MM~4MM | Standard | DIN |
Product Description

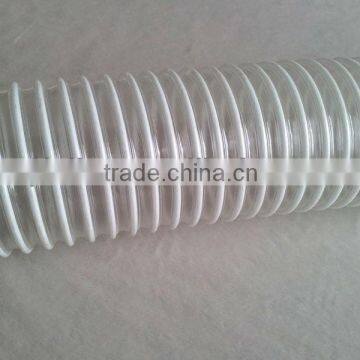

dredge suction hose
1. No smell, high quality, Food grade
2. transparent, clear
3. flexible, light weight
4. use good pvc material
Alias:
PVC suction hoses, spiral reinforced PVC suction hoses, water suction hoses with helix, PVC suction and discharge hoses, PVC grit hoses.
Application: Very ideally for conveying water, oil and power, abrasive mineral sands, gravel, cement, chips, shavings, construction, agricultural, and industrial service applications.
Temperature Range: -10 C to +65 C (14 F to 150 F)
Feature:
1. Good transparency and easy monitoring liquid flow.
2. Small bending radius and great ability of minus pressure resistance.
Structure:
1. Wall: High quality plasticized PVC
2. Reinforcement: Rigid PVC helix reinforced anti-choc spiral..
3. Characteristics: Strong, abrasion resistant, corrosion resistant and weather resistant. Its of stability and flexibility under performance.
Inside Diameter | Outside Diameter(mm) | Wall(mm) | Working Pressure (MPa) | Burst Pressure (MPa) | Length Max.(m) | Weight(kg/m) | Packing Measurement D*H(mm) | |
inch | mm | |||||||
1/4” | 6 | 11 | 2.5 | 0.7 | 2.1 | 100 | 0.115 | 470*130 |
5/16” | 8 | 14 | 3 | 0.7 | 2.1 | 100 | 0.156 | 500*130 |
3/8” | 9 | 15 | 3 | 0.7 | 2.1 | 100 | 0.17 | 500*150 |
1/2” | 12 | 18 | 3 | 0.6 | 1.8 | 100 | 0.22 | 550*170 |
5/8” | 15 | 22 | 3.5 | 0.6 | 1.8 | 100 | 0.305 | 650*200 |
3/4” | 19 | 26 | 3.5 | 0.6 | 1.8 | 50 | 0.38 | 650*150 |
1” | 25 | 33 | 4 | 0.6 | 1.8 | 50 | 0.547 | 700*200 |
1-1/4” | 32 | 41 | 4.5 | 0.5 | 1.5 | 40 | 0.85 | 800*170 |
1-1/2” | 38 | 48 | 5 | 0.5 | 1.5 | 40 | 1.2 | 850*210 |
2” | 50 | 62 | 6 | 0.5 | 1.5 | 40 | 1.6 | 980*250 |
2-1/2” | 64 | 80 | 8.5 | 0.4 | 1.2 | 30 | 3 | 920*240 |
3” | 75 | 92 | 8.5 | 0.4 | 1.2 | 30 | 3.9 | 1020*280 |
3-1/2” | 89 | 107 | 9 | 0.4 | 1.2 | 30 | 4.5 | 1100*330 |
4” | 102 | 120 | 9 | 0.3 | 0.8 | 30 | 5.2 | 1100*470 |
5” | 127 | 141 | 7 | 0.2 | 0.6 | 20 | 5 | 1140*430 |
6” | 152 | 166 | 7 | 0.2 | 0.6 | 20 | 6 | 1700*430 |
