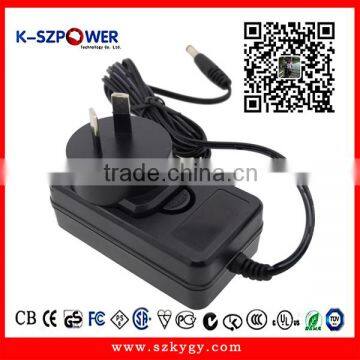

2015 A-series 24w K-122000 Switching Ac/dc Australian Plug Adapter 24V1a

Technical date()

1.Input voltage():AC 100-240v           2.Input current : 800Ma

3. Frequency()50/60HZ                        4.Efficiency()CEC-V/ERP/MEPS

5.Output voltage(),5%                  6.Standby Power()0.3W

Environment()

1Working temperature()0C to 40C       2.Storage temperture()- 20C to 60

3Humidity()5% to 95% R.H.

Safety standard()UL.FCC.CEC. CE .GS. ERP. CB .BS1363.SAA.C-TICK. MEPS .3C.KC.PSE

Reliable()

1.     MTBF50000Hours@25C (MIL-HDBK-217)

SPEC()

1Weight()140g        2.Size()L97mm*W44mm*H28mm

Typical parameters()

NO       Model No    Voltage(V)   Current(mA)  Ripple&Noise(mv)   Efficiency()115V/230V

1                         K-053000        5              3000               50                   V

2                         K-053500        5              3500               50                   V

3                         K-753000       7.5             3000               50                   V

4                         K-092000        9              2000               50                   V

5                         K-092500        9              2500               50                   V

6                         K-121500       12             1500                50                   V

7                         K-122000       12             2000                50                   V

8                         K-1381500       13.8           1500                50                   V

9                         K-240500       24             1000                50                   V
