2015 K-65 12V33A 400w switching led smps

FOB Price

USD $1 - $100 / Unit

500 Units(Min.Order)

Port shenzhen&Hongkong&Guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	K-szpower
Model Number	K-65	Output Power	Other, 480wmax
Output Type	Single	Input Voltage	Other, 85-264VAC, 85-264VAC
Output Voltage	3.3v ~48v	Output Frequency	50/60HZ
Output Current	22.5A ~60A

Product Description

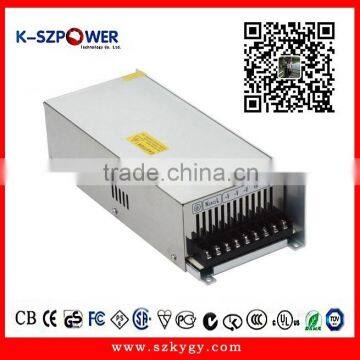

400W Single Output Switching Power Supply (M Series)

Low cost,high reliability
Built-in EMI filter
Low output ripple&noise
Protections:Over load/Short circuit
1 year warranty
Case:824 Size:205×114×50mm
AC input voltage range------------------------- 176-264VAC
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,40A/230VAC
DC adjustment range-----------------------------±10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% shut off, AC recycle to re-start
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10~+40℃@100%,+60℃@60% load
Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Forced air cooling by Built-in DC fan

Product model	DC output	Load regul.	R&N	Efficiency
K-400M-5	5V,80A	2%	100mV	76%
K-400M-12	12V,40A	1%	120mV	79%
K-400M-24	24V,20A	1%	240mV	81%
