Home > Products > LED Power Supply > 2015 K-59 120w series ygy power ac dc power led strip switching power supply 12v 10a 24v5a with CE UL

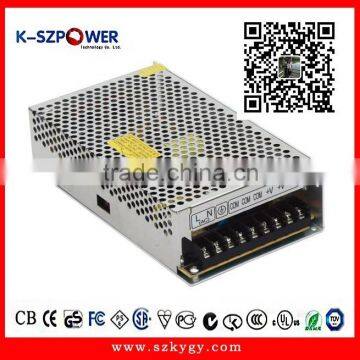

2015 K-59 120w series ygy power ac dc power led strip switching power supply 12v 10a 24v5a with CE UL

FOB Price

USD $1 - $100 / Unit

500 Units(Min.Order)

Port shenzhen&Hongkong&Guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	K-szpower
Model Number	K-59	Output Power	Other, 120wmax
Output Type	Single	Input Voltage	Other, 85-264VAC, 85-264VAC
Output Voltage	6v ~48v	Output Frequency	50/60HZ
Output Current	5A-20A

Product Description

120W Single Output Switching Power Supply (M Series)

Low cost,high reliability
Built-in EMI filter
Low output ripple&noise
Protections:Over load/Short circuit
1 year warranty
Case:806 Size:159×98×42mm
AC input voltage range---------88-132VAC/ 176-264VAC selected by switch
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,40A/230VAC
DC adjustment range-----------------------------±10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% hiccup mode,auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10~+40℃@100%,+60℃@60% load
Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Free air cooling convection

Product model	DC output	Load regul.	R&N	Efficiency
k-120M-6	6V,20A	2%	100mV	72%
k-120M-5	12V,10A	2%	100mV	78%
k-120M-15	15V,8A	1%	150mV	82%
k-120M-24	24V,5A	1%	200 mV	84%
k-120M-48	48V,5 A	1%	240 mV	84%
