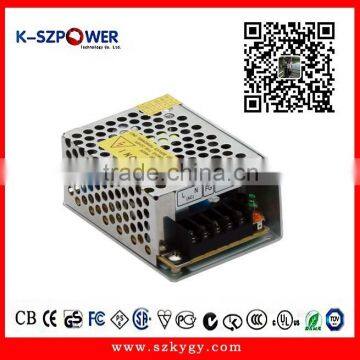

2015 K-51 15w series ygy power 12V1250MA POWER SUPPLY WITH CE UL

FOB Price

USD $1 - $100 / Unit

500 Units(Min.Order)

Port shenzhen&Hongkong&Guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	K-szpower
Model Number	K-51	Output Power	Other, 15wmax
Output Type	Single	Input Voltage	Other, 85-264VAC, AC 100-265vac
Output Voltage	3.3v ~48v	Output Frequency	50/60HZ
Output Current	300ma /600mA

Product Description

Low cost,high reliability
Built-in EMI filter
Low output ripple&noise
Protections:Over load/Short circuit
1 year warranty
Size:85×58×36mm
AC input voltage range--------------------------85-264VAC
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,40A/230VAC
DC adjustment range-----------------------------10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% hiccup mode,auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10-+40℃@100%,+60℃@60% load
Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Free air cooling convection

Product model	DC output	Load regul.	R&N	Efficiency
k-15M-3.3	3.3V,3A	3%	100mV	65%
K-15M-5	5V,3A	2%	100mV	70%
K-15M-7.5	7.5V,2A	1%	100mV	71%
K-15M-12	12V,1.3A	1%	120mV	74%
K-15M-13.8	13.8V,1.1A	1%	120mV	75%
K-15M-15	15V,1A	1%	150mV	75%
K-15M-24	24V,0.7A	1%	200 mV	77%
K-15M-48	48V,0.3A	1%	240 mV	77%
