Home > Products > LED Power Supply > 2015 K-58 100w series ygy power Switching power supply with high quality&comptitive price ,12Volt 8.5Ampere

2015 K-58 100w series ygy power Switching power supply with high quality&comptitive price ,12Volt 8.5Ampere

FOB Price

USD $1 - $100 / Unit

500 Units(Min.Order)

Port shenzhen&Hongkong&Guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	K-szpower
Model Number	K-58	Output Power	Other, 100wmax
Output Type	Single	Input Voltage	Other, 85-264VAC, 85-264VAC
Output Voltage	3.3v ~48v	Output Frequency	50/60HZ
Output Current	2200ma to 20a

Product Description

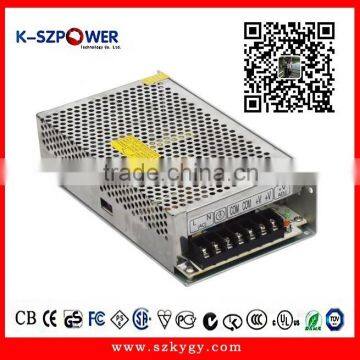

100W Single Output Switching Power Supply (M Series)

Low cost,high reliability
Built-in EMI filter
Low output ripple&noise
Protections:Over load/Short circuit
1 year warranty
Case:806 Size:159×98×42mm
AC input voltage range---------88-132VAC/ 176-264VAC selected by switch
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,40A/230VAC
DC adjustment range-----------------------------±10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% hiccup mode,auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10~+40℃@100%,+60℃@60% load
Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Free air cooling convection

Product model	DC output	Load regul.	R&N	Efficiency
k-100M-3.3	3.3V,20A	2%	100mV	72%
k-100M-5	5V,20A	2%	100mV	78%
k-100M-7.5	7.5V,13.5A	1%	100mV	79%
k-100M-12	12V,8.4A	1%	120mV	81%
k-100M-13.8	13.8V,7.3A	1%	120mV	81%
k-100M-15	15V,6.7A	1%	150mV	82%
k-100M-24	24V,4.5A	1%	200 mV	84%
k-100M-48	48V,2.2A	1%	240 mV	84%
