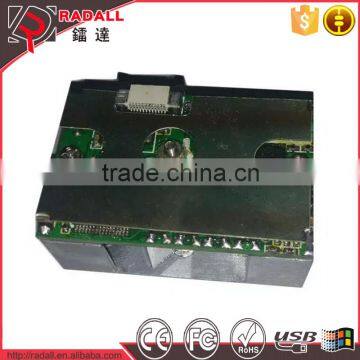

RD - 1045 Laser Barcode Scanner Module Without Decoding Function
- Guangzhou
- T/T Credit Card PayPal
You May Like
-
RD1055 32bit Laser Barcode Scanner Engine Including Decoding Function
-
E101A Laser Barcode Scanner Module
-
RD E101B Wired Laser Barcode Scanner Engine Including Decoding Function Quality Choice
-
RD 80 2D Barcode Scanner Module Support All 1D And 2 D Barcodes
-
RD 80 2D Barcode Scanner Module Support 2 D Barcodes
-
RD 80 Barcode Reader Engine Support 1D And 2 D qr Barcodes With Decoder
Product Details
| Products Status | Stock | Type | Barcode Scanner | |
| Scan Element Type | Other, Laser | Colour Depth | 16 Bit | |
| Interface Type | COM, PS/2, USB, Other, COM, PS/2, USB, RS232 | Max Paper Size | 4A | |
| Optical Resolution | 0.10mm(4mil) | Scan Speed | 200times/sec | |
| Brand Name | Radall | Model Number | RD-1045 | |
| Place of Origin | Guangdong, China |
Product Description
RD - 1045 Laser barcode scanner module without decoding function
Product parameter
Functionality Item | Parameter |
Type of illuminant | 650nn laser |
Use type | manual |
Bit error rate (BER) | 1/5 million |
Safety performance | Meet the Grade II National Criteria for Laser Safety |
Barcode types | EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber, Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI, Chinese postcode etc. |
Supported interfaces | RS232, PS2 keyboard, USB, etc. |
Scanning method | manual |
Transmission rate | RS232 Baudeate:2400-38400 |
Resolution (pcs0.9) | 0.10mm(4mil) |
Depth of field | 10-350mm (pos09 density 0.25) |
decode speed | 200 times/second |
Reading preciseness | 0.40-0.825mm |
Reading distance | 10-520mm |
Reading angle of elevation | 60° |
Reading angle of dip | 45° |
Operating temperature | -20°C-45°C |
Storage temperature | 20°C-45°C |
Operating humidity | 5%-85% |
Storage humidity | 5%-85% |
Power voltage | 5V |
Working current | 57mA |
Static current | 36mA |
Fall test | 100 times/1.5m |
Light intensity | Daylight, 4000Lux |
Electromagnetic interference | Complying with en50081, par1 criteria |
External electromagnetic interference resistance | Complying with en50081, par1criteria |
Dustproofing and waterproofing | Complying with en50081, par1 criteria |
Exterior dimension | Length*Width*Height: 40mm * 33mm * 17mm |
Materials | electonic |
Weight | 34g |
Feature:
1. CPU: ARM microprocessor, super decoding ability
2. Decoding rate: 100 times per second
3. customer setting: Barcode setting mode, easy to operate
4. Scan Depth of field up to 350mm
5. Full independent intellectual property rights
