Low temperature lamination machine TJ--DW1600R,laminator

lamination machine price

This laminator specially is used for surface post-processing on Spray painting, graphic printout, photo studio, printing industry, building materials industry, PVC sheet, acrylic, tiles, glass, wooden doors etc. fields. It is developed as a easy to use, energy-saving, low-cost laminator

Laminate the film on the surface of the material. It’s a good protection for the materials and images. So the materials could not be scratched and damaged. When using the cold function, please use the cold film. when using the hot function, please use the hot film.

 1. Main Technical parameters

1), Rated voltage: 220V

2), Frequency: 50HZ-60HZ

3), Length of rubber roller: 1600mm

4), Laminating/Coating width: ≤1580mm

5). Laminating/Coating speed: 0.4~3.2m/min

6). Coating temperature: room T~60°C

7), Preheating time: 20min

8), Thickness of operating materials: 0.1~35mm

9), Thickness of suitable film: 25~250mic

10), Motor powder: 90W

11), Speed gear control: 10

12), Heating roller elevation height: 40mm

13), Pressure adjustment method: Manual

14), Automatic removing film and rewinding the backing paper device: Motor

15), Gross weight: 255kg

16), Dimensions: 2000x720x1230mm

Wide range of application:

Be suitable for Photo album .poster, image-text printing ,Photo image, silk screen printing

X-frame show image.

apply to the cold lamination / hot lamination of the large area of the

PVC board , KT board and also be the protection film of the plates ,glass, section bar ,acrylic ,and wood door etc.

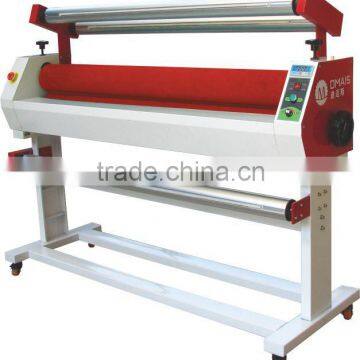

Photo of products:
