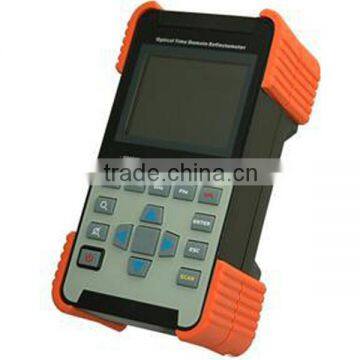

Micro OTDR Tester /optical receiver sensitivity test

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	Ruidian
Model Number	AOR500 optical receiver sensitivity test

1.Micro OTDR Tester /optical receiver sensitivity test
2.USB port connect to PC
3.Color TFT LCD
4.Built-in VFL

Key Features

l Convenient one-button testing

l High speed signal processing, less test time and fast analysis

l Color TFT LCD

l USB port connect to PC

l Input optical signal auto detection and self-protection

l Built-in VFL

The friendly User Interface

The friendly user interface shows details of the event list in a clear and big screen.

Coordinated with the distinctive designed keyboard operation,

displaying of event trace in a clear and brief way for trace zooming in or zooming out.

Specification

	AOR500-A	AOR500-B
Wavelength	1310±20nm / 1550±20nm
Dynamic Range	28dB / 26dB	32dB / 30dB
Event Dead Zone	< 1.5m
Attenuation Dead Zone	< 8.0m
Pulse Width	10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1.0us, 2.5us
Distance uncertainty	±(1.0m ± 0.005% * testing distance ± resolution)
Linearity	±0.05dB/ dB
Loss Resolution	0.001dB
Distance Resolution	1m
Connector	FC, SC
VFL	1mW
Data Storage	> 1000 traces (standard 1GB SD card)
Display	3.5 inch TFT color LCD
Interface	USB
Battery	Built-in rechargeable battery
Working Time	>10 hrs (Bellcore TR-NWT-001138)
Operating Temp.	-10 -- +40 °C, < 80%RH
Storage Temp.	-30 -- +60 °C, < 80%RH
Net Weight	0.9 Kg
Dimension	230mm×120mm×60mm

Standard Accessories
