Product Details
| Place of Origin | Sichuan, China | Brand Name | Ruidian | |
| Model Number | RED5000 EDFA optical amplifier |
Product Description

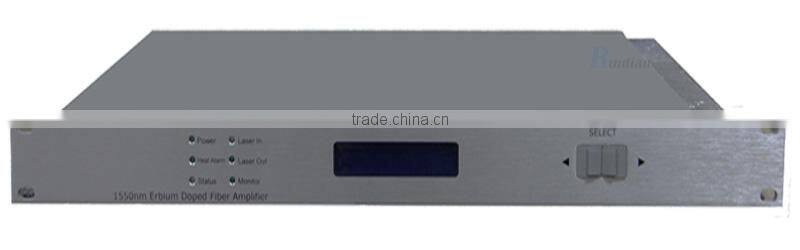

EDFA optical amplifier/amplifier 5.1 optical
RED5000 fiber amplifier series is a CATV booster optical amplifier with gain spectrum band within 1530~1560nm. It has low noise figure, high-saturated output power. It is applicable for central bureau, sub-bureau and line relay, as well as other optical communication network.
Features
Dual mechanic cooler in the housing and inside iron box to protect the laser. Work a long time. |
RJ45 port for SNMP remote management. |
RS232 for local management. |
Adopts JDSU, Fitel and Bookham Pump laser. |
Good stability, VFD or LED displays the working conditions, good trouble alarm system. |
Power supply 90V ~ 265V AC or -48V DC for the user’s choice. |
Max output can reach 27dBm. |
Parameters
Parameter | Units | Typical |
Input | dBm | -3 ~ 10 |
Wavelength | nm | 1530 ~ 1560 |
Output Stability | dB | ≤0.2 |
Polarization Sensitivity | dB | <0.2 |
Polarization Dispersion | PS | <0.5 |
Optical Return Loss | dB | ≥45 |
Fiber Connector | FC/APC or SC/APC | |
Noise Figure | dB | <4.5(0dBm Optical Input) |
Network Interface | RJ45(SNMP) / RS232 / RS486 | |
Power Consumption | W | 50 |
Power Supply | V | 220VAC(110 ~240) or -48VDC |
Working Temp | °C | -20 ~ +85 |
Size | 19″* 15″* 1.75″ | |
Weight | Kg | 5 |
Conversion of Optical Power
Items | Parameter | ||||||||
5014 | 5015 | 5016 | 5017 | 5018 | 5019 | 5020 | 5021 | 5022~27 | |
Output (dBm) | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22~27 |
Output (mW) | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160~500 |
Order information
Module | Output power | Output port | SNMP | Optical connector | Power supply (PS) | No. of PS |
RED5000 | 14~27dBm | 1,2,4,8,16 | With/Without | SC/APC, FC/APC | -48VDC/220VAC | 1,2 |
