chocolate refiner conch
- Shanghai or Ningbo China
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Newtang | |
| Model Number | NTM-JMJ500A | Type | Other, chocolate machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

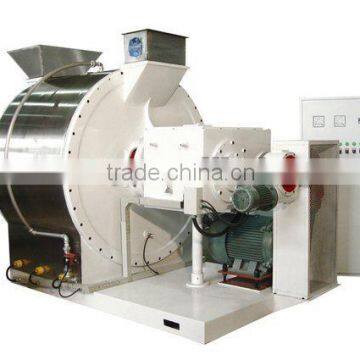

chocolate grinder
Heated by electric power. The behind cover is installed with the ventilating fan, surface cover made by SUS304, others are made by carbon steel with paint.
The material of the lining bars, scrapers are 65Mn after heat treatment, it can prelong their life. The base and gear box are cast iron, so it will be more stable and can make sure the fineness degree.
Technical data
Model | Max . capacity(L) | Finesse degree (μm) | WorkingTime(h) | power(kw) | Weight (kg) | Dimension (mm) |
JMJ40 | 40 | 25-20 | 7-9 | 2.2 | 360 | 1100*800*850 |
JMJ500C | 500 | 25-20 | 14-20 | 11 | 2900 | 2150*1850*1300 |
JMJ500W | 500 | 25-20 | 16-22 | 15 | 3000 | 2150*2000*1300 |
JMJ500C/D | 500 | 25-20 | 14-20 | 11 | 3000 | 2350*1850*1300 |
JMJ500W/D | 500 | 25-20 | 14-20 | 15 | 3100 | 2350*2000*1300 |
JMJ1000C | 1000 | 25-20 | 14-20 | 22 | 4100 | 2980*1250*1650 |
JMJ1000W | 1000 | 25-20 | 14-20 | 22 | 4250 | 2780*1250*1650 |
JMJ2000 | 2000 | 25-20 | 16-22 | 37 | 5300 | 3320*2000*1950 |
JMJ3000 | 3000 | 25-20 | 16-22 | 55 | 8800 | 4200*2000*1950 |
