Home > Products > CNC cutting machine > Huawei Multifunction CNC cutter machine
Huawei Multifunction CNC cutter machine
- 50000 Set / Sets per Month
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
Place of Origin | Shanghai, China | |||
Brand Name | HUAWEI | Model Number | HNC-1200M | |
Voltage | 220V/on-demand | Rated Power | - | |
Dimension(L*W*H) | 3.5*2.6*0.4M | Weight | 175KG | |
Certification | CE | Warranty | 1 year, 1year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

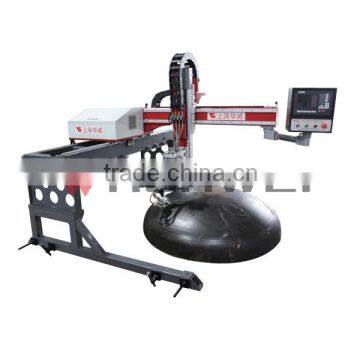

HNC-1200M Multifunction CNC Cutter machine
This product is a widely used in chemical pressure vessel,nuclear power equipment,shipbuilding and marine engineering industry cutting equipment.
It can cutting cylindrical or conical shell,elliptical head or other type of complex space curved surface or complex graphics.It adopts the multipe compound movement technology,achieves the revolving of cutting torch,thereby cutting welding groove.The main characteristics of the machine:
Product Features
(1) Cutting in ellipsoidal or cylindrical shell hole,and can complete intersecting line cutting of pipe.
(2) It adopts the multi-axis linkage numerical control,cutting with high precision,can realize the automatic groove cutting.
(3)It can also cut the steel plate in the cutting range,or groove cut the cutted steel plate.
(4) The configure roller can cut steel pipe that the diameter is less than 1000mm.
(5) With strong magnetic steel when cutting steels that the diameter is larger than 1000mm can make the machine fixed conveniently.
(6) Cutting programming can complete through teaching system or 3D diagrams.
Model | Cutting Range MM | Beveling Range | MAX asddle height | Cutting Head Diameter (mm/min) | Cutting Head Diameter (mm/min) | Beveling Angle | Flame cutting thickness | |
HNC-1200M | 1200*2000 | 1000*1000 | 350 | ≤2000 | ≥100 | ±45° | 6-150mm | Depending on Plasma power |
1.After quality testing,our products will be well packed.
First plastic film inside
Then Packed by EPE foam
Free fumigation wooden carton outside
The enterprise of Huawei start at 1983 when we produced the first set of electrode dryer. Shanghai Huawei Welding & Cutting Machine Co., Ltd.was incorporated at 1995, which is the leading enterprise in domestic industry and has always specialized in R&D and manufacturing of cutting & welding machinery for 30 years. Our featured products are gas cutting machine series, CNC cutting machine, welding tractor,beveling machine, electrode dryer and oven, and other welding & cutting accessories.
The Company covers an area of 26, 000 m2 and the construction area is 32, 000 m2. There are more than 450 employees and 72 technicians in total together with Shanghai Welding & Cutting Tool Works and Jiangsu Haoguanjia Rubber Industry Co., Ltd. The Company has solid technical force and advanced test equipment. Since its incorporation, the Company has passed ISO9001 Quality Management System Certification and CE
Product Certification successively. Based on the complete selling network and after-sale service, the Huawei brand products gradually occupy the international market and win the trust of customers at home and abroad.
The tenet of the Company is "Strives for the survival by quality, pursue efficiency by the management and seek development with science and technology". We warmly welcome customers to visit our company.
We attent the oversea exhibition each year since from 2010 till now,and we have agent in some country.
Shanghai Huawei Welding&Cutting Machine Co.,LTD
Address: Rongtai Industrial Park, Ecaoshan, Nanshawan, Qianshan, Xiangzhou Dist., Zhuhai, Guangdong, China
Tel: + 86-21-69591999
Fax: +86-21-69597771
P.C:201804
The machine working video please check the our official web:
/en/product/index_detail.aspx?ID=11769
