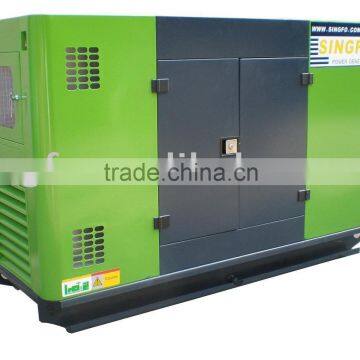

430kw power generator (CE approved)
- shenzhen
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | Singfo | |
Model Number | Singfo | Output Type | AC Three Phase | |
Speed | 1500/1800 r/min | Frequency | 50/60 Hz | |
Rated Power | 20-1500kva (16kw to 1200kw) | Rated Voltage | 110/220V, 220/380V...adjustable | |
Rated Current | different |
Product Description
Specifications of 430kw power generator (CE approved)
Diesel generator power by Cummins engine couple with Stamford alternator
Controller (Control panel) Brand: Deep Sea or Smartgen for SINGFO diesel generator
(Digital and intelligent) LED Screen and touch Buttons’for SINGFO diesel generator
Diesel generator Combination | Standby Power | Rated Power | Power for Engine and Alternator | ||||
Engine | Alternator | kva | kw | kva | kw | Engine | Alternator |
4B3.9-G2 | PI144D | 22 | 18 | 20 | 16 | 24kw/30kva | 16kw/20kva |
4B3.9-G2 | PI144E | 28 | 22 | 25 | 20 | 24kw/30kva | 20kw/25kva |
4B3.9-G2 | PI144F | 30 | 24 | 27 | 22 | 24kw/30kva | 22kw/27.5kva |
4BT3.9-G2 | PI144G | 33 | 26 | 30 | 24 | 36kw/40kva | 24kw/30kva |
4BT3.9-G2 | PI144H | 39 | 31 | 35 | 28 | 36kw/40kva | 28kw/35kva |
4BT3.9-G2 | PI144J | 44 | 35 | 40 | 32 | 36kw/40kva | 32kw/40kw |
4BTA3.9-G2 | PI144K | 47 | 37 | 43 | 34 | 50kw/62.5kva | 34kw/42.5kva |
4BTA3.9-G2 | UCI224D | 55 | 44 | 50 | 40 | 50kw/62.5kva | 40kw/50kva |
4BTA3.9-G2 | UCI224E | 62 | 50 | 56 | 45 | 50kw/62.5kva | 48kw/60kva |
6BT5.9-G2 | UCI224F | 80 | 64 | 73 | 58 | 87kw/109kva | 58kw/72.5kva |
6BT5.9-G2 | UCI224G | 94 | 75 | 85 | 68 | 87kw/109kva | 68kw/85kva |
6BT5.9-G2 | UCI274C | 103 | 83 | 94 | 75 | 87kw/109kva | 80kw/100kva |
6BTA5.9-G2 | UCI274C | 110 | 88 | 100 | 80 | 110kw/135kva | 80kw/100kva |
6BTA5.9-G2 | UCI274D | 124 | 99 | 113 | 90 | 110kw/135kva | 91.2kw/114kva |
6BTAA5.9-G2 | UCI274E | 138 | 110 | 125 | 100 | 120kw/150kva | 112kw/140kva |
6CTA8.3-G2 | UCI274E | 154 | 123 | 140 | 112 | 163kw/204kva | 112kw/140kva |
6CTA8.3-G2 | UCI274F | 176 | 141 | 160 | 128 | 163kw/204kva | 128kw/160kva |
6CTA8.3-G2 | UCI274G | 200 | 160 | 182 | 146 | 163kw/204kva | 145.6kw/182kva |
6CTAA8.3-G2 | UCI274H | 220 | 176 | 200 | 160 | 200kw/250kva | 160kw/200kva |
6LTAA8.9-G2 | UCDI274J | 253 | 202 | 230 | 184 | 235kw/294kva | 184kw/230kva |
6LTAA8.9-G2 | UCDI274K | 275 | 220 | 250 | 200 | 220kw/240kva | 200kw/250kva |
NT855-GA | UCDI274K | 275 | 220 | 250 | 200 | 231kw/289kva | 200kw/250kva |
NTA855-G1A | HCI444D | 313 | 250 | 275 | 220 | 261kw/326kva | 240kw/300kva |
NTA855-G1B | HCI444D | 330 | 264 | 300 | 240 | 284kw/355kva | 240kw/300kva |
NTA855-G1B | HCI444ES | 344 | 275 | 313 | 250 | 284kw/355kva | 260kw/325kva |
NTA855-G2A | HCI444E | 378 | 303 | 344 | 275 | 313kw/391kva | 280kw/350kva |
NTA855-G4 | HCI444E | 385 | 308 | 350 | 280 | 317kw/391kva | 280kw/350kva |
NTA855-G7 | HCI444FS | 413 | 330 | 375 | 300 | 343kw429kva | 304kw/380kva |
NTA855-G7A | HCI444F | 440 | 352 | 400 | 320 | 360kw/450kva | 320kw/400kva |
KTA19-G2 | HCI444F | 440 | 352 | 400 | 320 | 336kw/420kva | 320kw/400kva |
KTA19-G3 | HCI 544C | 495 | 396 | 450 | 360 | 403kw/504kva | 360kw/450kva |
KTA19-G4 | HCI544D | 550 | 440 | 500 | 400 | 448kw/560kva | 400kw/500kva |
KTA19-G5 | HCI544E | 578 | 462 | 525 | 420 | 470kw/588kva | 480kw/600kva |
KTA19-G8 | HCI544E | 649 | 519 | 590 | 472 | 510kw/640kva | 480kw/600kva |
KTAA19-G6 | HCI544E | 633 | 506 | 575 | 460 | 520kw/650kva | 480kw/600kva |
KTAA19-G6A | HCI544E | 660 | 528 | 600 | 480 | 540kw/675kva | 480kw/600kva |
KTAA19-G6A | HCI544F | 688 | 550 | 625 | 500 | 540kw/675kva | 536kw/670kva |
QSKTAA19-G3 | HCI544F | 688 | 550 | 625 | 500 | 574kw/718kva | 536kw/670kva |
KT38-G | HCI544F | 688 | 550 | 625 | 500 | 679kw/849kva | 536kw/670kva |
KT38-GA | LVI634B | 798 | 638 | 725 | 580 | 640kw/800kva | 600kw/750kva |
KTA38-G2 | LVI634B | 825 | 660 | 750 | 600 | 664kw/830kva | 600kw/750kva |
KTA38-G2A | HCI634G | 891 | 713 | 810 | 648 | 813kw/1016kva | 648kw/810kva |
KTA38-G2A | LVI634D | 1001 | 801 | 910 | 728 | 813kw/1016kva | 728kw/910kva |
KTA38-G5 | HCI634J | 1100 | 880 | 1000 | 800 | 880kw/1100kva | 800kw/1000kva |
KTA38-G9A | HCI634K | 1221 | 977 | 1110 | 888 | 1070kw/1337kva | 888kw/1110kva |
KTA38-G9A | PI734A | 1348 | 1078 | 1225 | 980 | 1070kw/1337kva | 980kw/1225kva |
KTA50-G3 | PI734A | 1348 | 1078 | 1225 | 980 | 1097kw/1371kva | 980kw/1225kva |
KTA50-G8 | PI734B | 1496 | 1197 | 1360 | 1088 | 1200kw/1500kva | 1088kw/1360kva |
KTA50-GS8 | PI734B | 1581 | 1265 | 1438 | 1150 | 1287kw/1609kva | 1204kw/1505kva |
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tighted plastic films several circles.
Shipping:
1 sea transportation from shenzhen.
2 the delivery time is decided by your needed machines or machine parts. But it also follows your needs.
1. ATS (Automatic Transfer switch); Which can start the diesel generator when the main power is off; If the main power comes back, it will shut down generator. And ATS have the function of AMF (Automatic Main power failure).
2. MCCB (Molded case circuit breaker);
3. Battery charger (float charger);
4. Extra daily fuel tank;
5. Paralleling system;
This system can make several generators work together and automatically distribute the load according to set.
6. Remote Control Panel;
7. Water separate (additional cooling system)
Singfo Electrical Device Engineering Co.,LTD is one of the leading manufacturers for diesel generators in China .Singfo was founded in 1998 as a subsidiary of Singfo Group,located in Dongguan city,Guangdong provice.With the business development,more than 20 domestic and overseas branches were established in the last 17 years.As of now Singfo is already a power company composed of manufacturing ,R&D,sales and after sales devisions.
Singfo has won a great reputation in diesel generator industry field by supplying quality products and service to various customers involved in factory ,hydropower plant, hotel, hospital,civil,mining and so on.
is able to provide quality products,service and power generation solutions to worldwide customers.
1.OEM of Cummins in China
2.professional package
fessional service staff
4.we insist that if the product quality problems, we will be the first time to deal with
5.we promise you best price.
